Texas Instruments provides a layout and routing guide in the ADS131M03IPWT evaluation module user's guide, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The ADS131M03IPWT has an internal calibration mechanism, but it may require additional external calibration to achieve the best possible accuracy. Texas Instruments provides a calibration guide in the device's datasheet and application notes, which includes steps for gain and offset calibration.
The maximum input voltage range for the ADS131M03IPWT is ±VREF (typically ±2.5V). To protect the device from overvoltage, it is recommended to use input protection circuits such as voltage dividers, resistors, or clamping diodes to limit the input voltage to within the specified range.
The optimal clock frequency and sampling rate for the ADS131M03IPWT depend on the specific application requirements. Texas Instruments provides guidelines for clock frequency and sampling rate selection in the device's datasheet and application notes, which include considerations for noise, distortion, and power consumption.
Texas Instruments recommends using a low-noise power supply with adequate decoupling and filtering to minimize noise and ensure optimal performance. A typical decoupling scheme includes a 10uF capacitor in parallel with a 100nF capacitor, placed close to the device's power pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131M03IPWT Overview

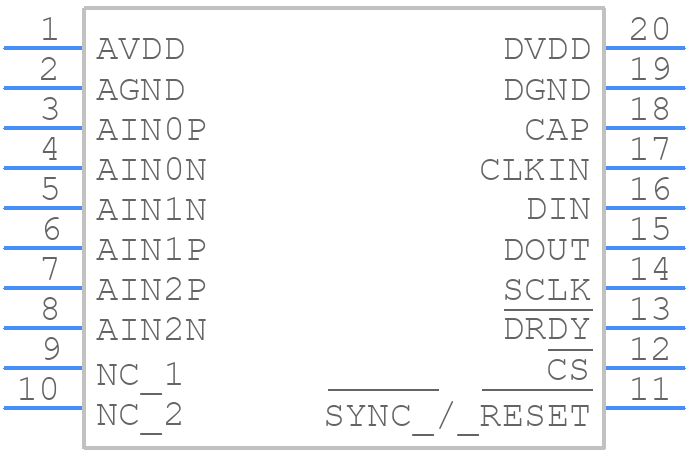

Use the download button to access the ADS131M03IPWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13,
or try a keyword search, such as Analog to Digital Converters
