Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter and a ferrite bead to filter out high-frequency noise.
Optimize the ADC's performance by selecting the correct gain, offset, and sampling rate for your application. Use the device's built-in calibration features and adjust the internal voltage reference to minimize errors. Additionally, consider using an external voltage reference for improved accuracy.
Follow the recommended power-up and power-down sequences outlined in the datasheet. Ensure that the analog power supply (AVDD) is powered up before the digital power supply (DVDD), and that the device is fully powered down before removing power from the supplies.
Use a shielded enclosure, keep the device away from high-frequency sources, and use a common mode filter to reduce EMI. Ensure that the PCB is properly grounded, and use a ferrite bead to filter out high-frequency noise. Additionally, consider using a shielded cable for the analog input signals.
The ADS131M04IPWR has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and use a heat sink if necessary. Operate the device within the recommended temperature range (-40°C to 125°C) and avoid thermal gradients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131M04IPWR Overview

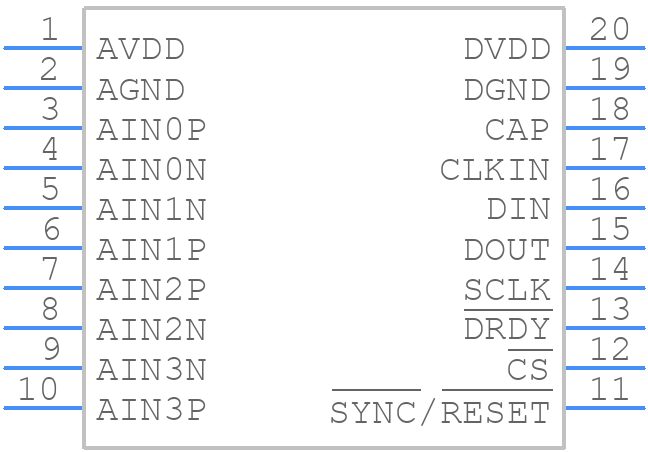

Use the download button to access the ADS131M04IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
