Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter and a ferrite bead to filter out high-frequency noise.
Optimize the ADC's performance by selecting the correct gain, offset, and sampling rate for your application. Use the device's built-in calibration features, such as the internal voltage reference and calibration registers, to ensure accurate conversions. Additionally, consider using external filters or signal conditioning circuits to improve signal quality.
Use a SPI or I2C interface to communicate with the ADS131M04IPWT. Ensure that the microcontroller or FPGA is configured to match the ADC's clock speed and data format. Use a level shifter if necessary to match voltage levels. Also, consider using a dedicated ADC interface IC or a microcontroller with a built-in ADC interface to simplify the design.
Implement error handling mechanisms in your firmware to detect and respond to errors, such as overflow or underflow. Use the ADC's built-in error flags and status registers to detect errors. Consider using a watchdog timer to reset the ADC in case of a fault. Also, implement data validation and sanity checks to ensure accurate and reliable data.
The ADS131M04IPWT is rated for operation from -40°C to 125°C. Ensure good thermal design practices, such as providing adequate heat sinking, using thermal vias, and minimizing thermal resistance. Consider using thermal simulation tools to optimize the design. Also, ensure that the device is operated within its specified temperature range and that the PCB is designed to minimize thermal gradients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131M04IPWT Overview

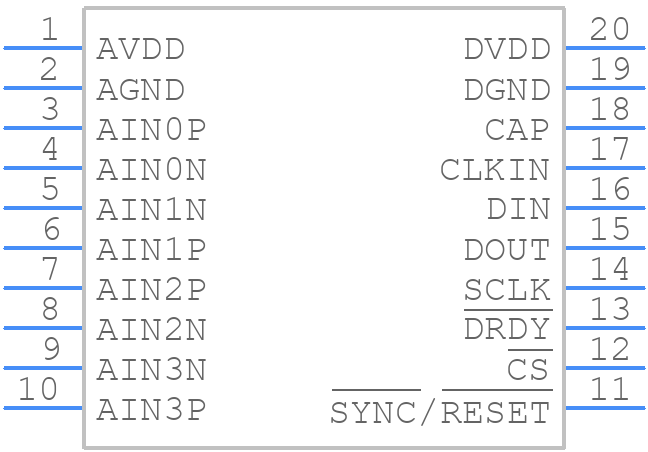

Use the download button to access the ADS131M04IPWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
