ADS131M04QPWRQ1 - Texas Instruments

Description: Analog to Digital Converters - ADC Automotive, four-channel, 24-bit, 64-kSPS, simultaneous-sampling, delta-sigma ADC

Download ADS131M04QPWRQ1 Model

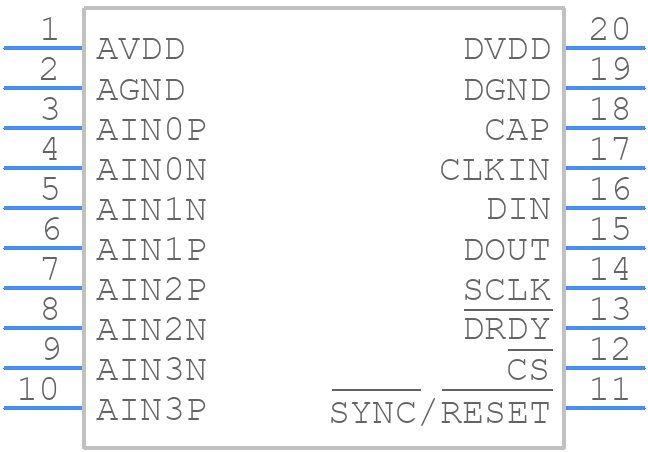

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS131M04QPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0020A---
click to zoom
3D Models
ADS131M04QPWRQ1 - Texas Instruments  - 3D model - Small Outline Packages - PWP0020A---
click to zoom

ADS131M04QPWRQ1 Details

  • Manufacturer Part Number:

    ADS131M04QPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -1.3 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0006%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.064 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADS131M04QPWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide and PCB design recommendations in the ADS131M04QPWRQ1 evaluation module user's guide (SLAU445) and the ADS131M04QPWRQ1 datasheet. It is recommended to follow these guidelines to minimize noise and ensure optimal performance.
  • The ADS131M04QPWRQ1 has an internal calibration mechanism, but it may require additional external calibration depending on the application. Texas Instruments provides calibration procedures and guidelines in the ADS131M04QPWRQ1 datasheet and application notes (e.g., SBAA274).
  • The maximum input voltage range for the ADS131M04QPWRQ1 is ±VREF (typically ±2.5V). Overvoltage protection can be achieved using external components such as voltage dividers, attenuators, or clamping circuits. Texas Instruments provides guidelines for overvoltage protection in the ADS131M04QPWRQ1 datasheet and application notes.
  • The ADS131M04QPWRQ1 has a low-power mode that can be enabled by setting the appropriate register bits. Additionally, the device's power consumption can be optimized by adjusting the sampling rate, using the internal voltage reference, and minimizing the number of active channels. Texas Instruments provides power consumption estimates and optimization guidelines in the ADS131M04QPWRQ1 datasheet and application notes.
  • The recommended clock source for the ADS131M04QPWRQ1 is a high-quality, low-jitter clock source such as a crystal oscillator or a high-frequency clock generator. Clock jitter can be minimized by using a clock source with a low phase noise and a high-frequency clock signal. Texas Instruments provides guidelines for clock source selection and clock jitter reduction in the ADS131M04QPWRQ1 datasheet and application notes.
