ADS131M06IRSNT - Texas Instruments

Description: Analog to Digital Converters - ADC 24-bit, 32-kSPS, 6-channel, simultaneous-sampling, delta-sigma ADC 32-QFN -40 to 125

Download ADS131M06IRSNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

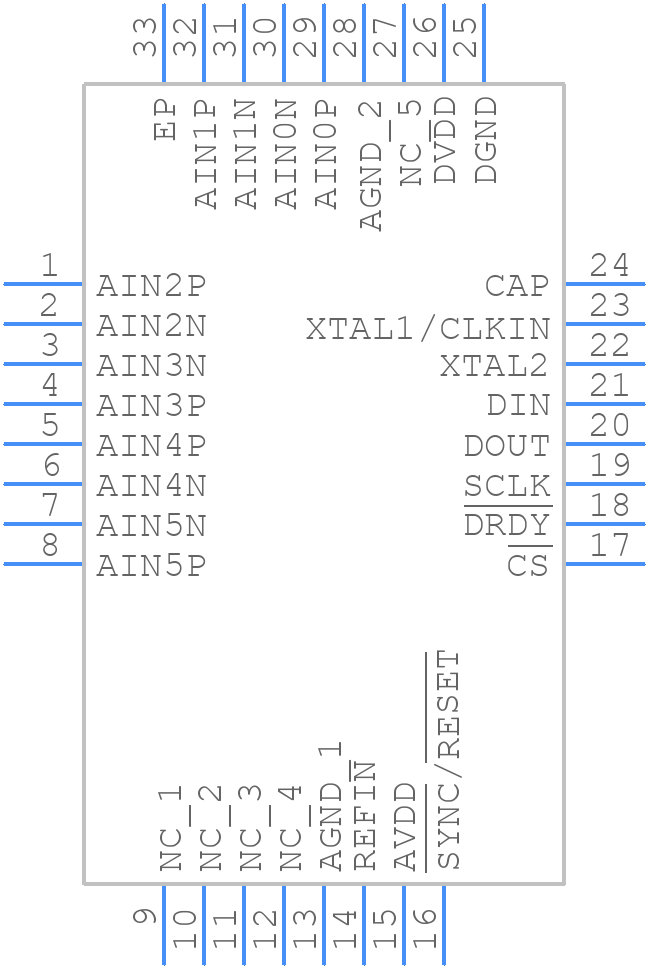

ADS131M06IRSNT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS131M06IRSNT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSN (S-PWQFN-N32)
click to zoom
3D Models
ADS131M06IRSNT - Texas Instruments - 3D model - Quad Flat No-Lead - RSN (S-PWQFN-N32)
click to zoom

ADS131M06IRSNT Details

  • Manufacturer Part Number:

    ADS131M06IRSNT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -1.3 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.00075%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    6

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.032 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5.9 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS131M06IRSNT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the ADS131M06 application note (SLAU445) that recommends a 4-layer PCB with a dedicated analog ground plane, careful routing of analog and digital signals, and the use of decoupling capacitors to minimize noise and ensure optimal performance.
  • The ADS131M06IRSNT has several power modes and configuration options that can be used to optimize power consumption and performance. Refer to the device's datasheet and the ADS131M06 power management application note (SLAU446) for guidance on configuring the device for low power consumption and optimal performance.
  • The recommended clock source for the ADS131M06IRSNT is a high-quality, low-jitter clock source such as a crystal oscillator or a low-jitter clock generator. To minimize clock jitter, use a clock source with a jitter specification of less than 100 ps, and ensure that the clock signal is properly decoupled and routed to the device.
  • To ensure EMC and EMI compliance, follow proper PCB layout and routing guidelines, use shielding and grounding techniques, and ensure that the device is properly decoupled and filtered. Refer to the ADS131M06 EMC and EMI application note (SLAU447) for more information.
  • The recommended calibration procedure for the ADS131M06IRSNT involves a full-scale calibration and a zero-scale calibration. The frequency of calibration depends on the application and the desired level of accuracy. As a general rule, calibration should be performed during manufacturing and whenever the device is powered on or reset.
