The recommended layout and routing for the ADS1602IPFBT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS1602IPFBT in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are properly separated and that the power supply is well-regulated.
The maximum sampling rate that can be achieved with the ADS1602IPFBT is 100 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the analog input frequency, and the desired signal-to-noise ratio.
The ADS1602IPFBT has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. The calibration process should be performed at the operating temperature range of the device.
The power consumption of the ADS1602IPFBT depends on the operating mode and the clock frequency. In normal operating mode, the typical power consumption is around 35 mW at 3.3 V and 100 kSPS. In power-down mode, the typical power consumption is around 10 μW.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1602IPFBT Overview

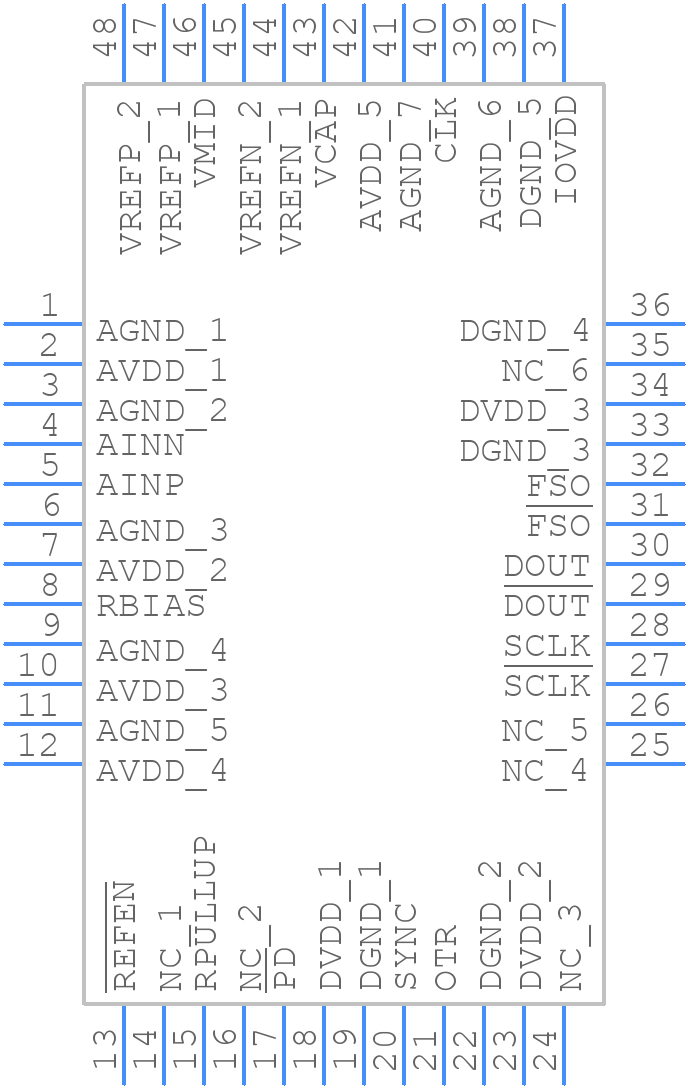

Use the download button to access the ADS1602IPFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS16,
or try a keyword search, such as Analog to Digital Converters
