Texas Instruments provides a recommended layout and routing guide in the ADS5424IPGPR evaluation module (EVM) user's guide. It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
The ADS5424IPGPR datasheet provides a general guideline for the analog input filter. However, the optimal filter design depends on the specific application's frequency range, noise environment, and signal amplitude. Engineers can use tools like TI's FilterPro or online filter design calculators to optimize the filter for their application.
Clock jitter can affect the ADS5424IPGPR's performance, particularly in high-frequency applications. TI recommends using a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. The datasheet provides guidelines for clock jitter tolerance, but engineers should consult with TI's support team for specific guidance on their application.
To ensure reliable data transfer over the SPI interface, engineers should follow the SPI protocol guidelines, use a suitable clock frequency, and implement error checking mechanisms, such as CRC or checksum. Additionally, they should ensure that the SPI bus is properly terminated and that the signal integrity is maintained.
The ADS5424IPGPR datasheet provides a recommended power-up sequence to ensure proper device operation. Engineers should power up the analog supply (AVDD) before the digital supply (DVDD), and then bring the reset pin (RESET) high. This sequence helps prevent latch-up and ensures a reliable startup.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS5424IPGPR Overview

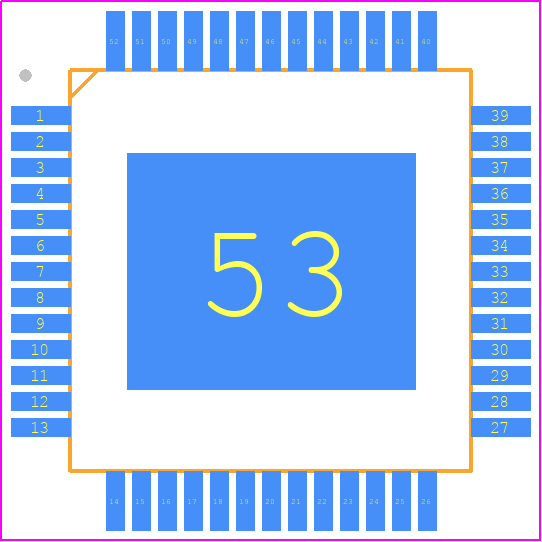

Use the download button to access the ADS5424IPGPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS54,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
