FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
210 MHz
Sample and Hold / Track and Hold:
TRACK
Seated Height-Max:
1.2 mm
Supply Current-Max:
410 mA
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
12 mm
ADS5440MPFPEP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the ADS5440MPFPEP evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The optimal analog input filter design for the ADS5440MPFPEP depends on the specific application and signal characteristics. However, a general guideline is to use a low-pass filter with a cutoff frequency slightly higher than the Nyquist frequency to prevent aliasing, and to choose a filter order and component values that balance signal attenuation and noise rejection.
The maximum clock frequency for the ADS5440MPFPEP is 160 MSPS. Using a higher clock frequency can improve the converter's dynamic performance, but it also increases the power consumption and may require more careful PCB layout and signal routing to minimize noise and jitter.
The ADS5440MPFPEP requires calibration and configuration to optimize its performance for a specific application. This can be done using the device's built-in calibration modes and registers, as well as through the use of Texas Instruments' software development tools and evaluation modules.
The ADS5440MPFPEP has a maximum junction temperature of 150°C. To ensure reliable operation in high-temperature environments, it is essential to provide adequate heat sinking, thermal management, and cooling mechanisms, such as thermal pads, heat sinks, and fans, to keep the device temperature within the recommended operating range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS5440MPFPEP Overview

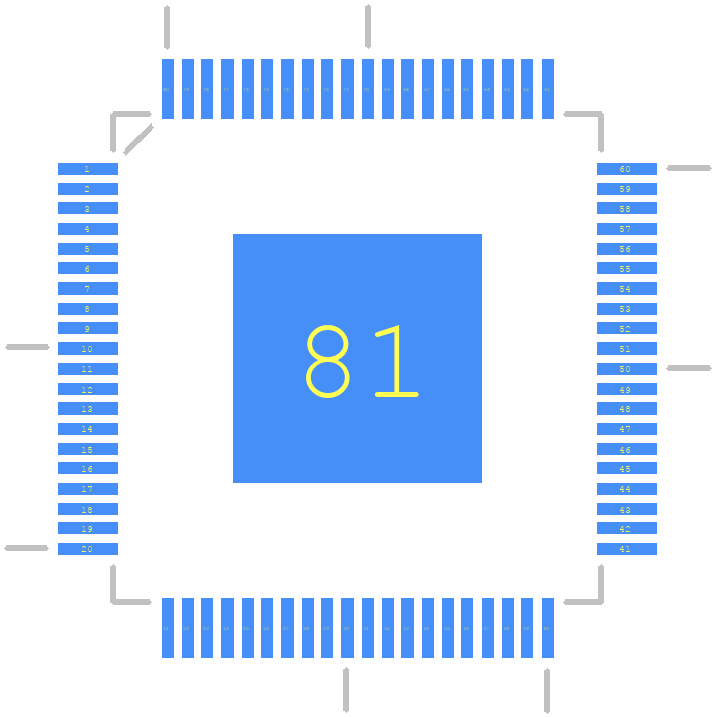

Use the download button to access the ADS5440MPFPEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS54,
or try a keyword search, such as Analog to Digital Converters
