ADS54T04IZAYR - Texas Instruments

ADS54T04IZAYR Details

• Manufacturer Part Number:

  ADS54T04IZAYR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

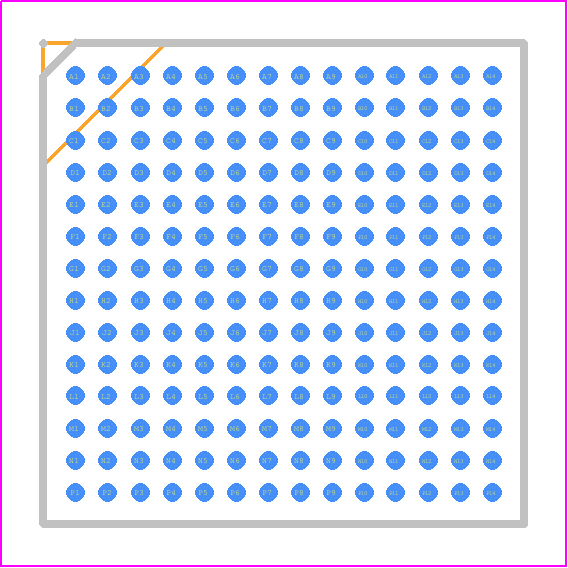

• Part Package Code:

  BGA

• Package Description:

  LFBGA-196

• Pin Count:

  196

• Country Of Origin:

  Philippines

• ECCN Code:

  5A991.B.1

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog Input Voltage-Max:

  1.25 V

• Analog Input Voltage-Min:

  -1.25 V

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  R-PBGA-B196

• JESD-609 Code:

  e1

• Length:

  12 mm

• Linearity Error-Max (EL):

  0.1221%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  2

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  196

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  OFFSET BINARY, 2S COMPLEMENT BINARY

• Output Format:

  SERIAL, PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA196,14X14,32

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  500 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  1.4 mm

• Supply Current-Max:

  330 mA

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  12 mm
