Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog signals should be routed close to the ADC, and the digital signals should be routed away from the ADC. Additionally, the power supply lines should be decoupled with capacitors and ferrite beads to minimize noise.
The clock signal should be a low-jitter, high-frequency clock (e.g. 100 MHz) with a 50% duty cycle. The clock signal should be routed close to the ADC and should not be shared with other devices. Additionally, the clock signal should be decoupled with capacitors to minimize noise.
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps to prevent damage or malfunction due to incorrect power-up sequencing.
The output data from the ADS5562IRGZT is a 16-bit parallel data bus. The data should be captured and processed using a microcontroller or FPGA. The recommended data processing and filtering include digital filtering, gain correction, and offset correction to achieve the best possible performance.
The ADS5562IRGZT has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Additionally, ensure that the device is operated within the recommended operating conditions and that the power supply is stable.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS5562IRGZT Overview

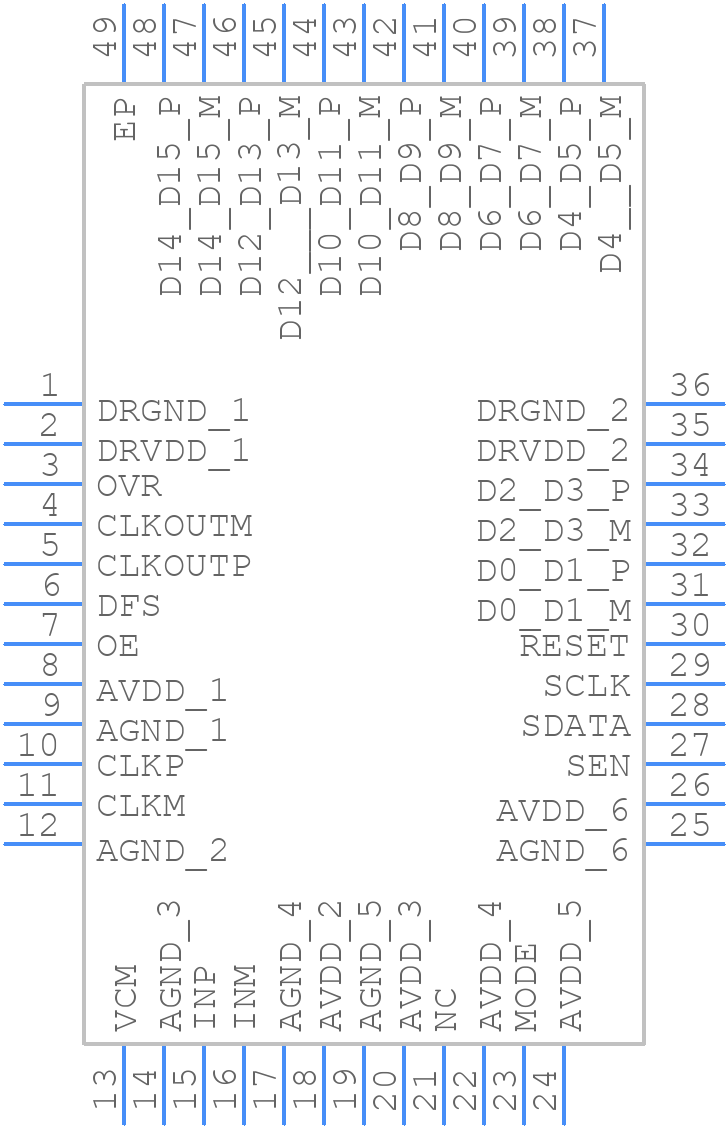

Use the download button to access the ADS5562IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS55,
or try a keyword search, such as Analog to Digital Converters
