ADS58C23IPFP - Texas Instruments

Description: Dual Channel IF BTS Receiver with Signal Processing for multi-mode 3G+LTE

Download ADS58C23IPFP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADS58C23IPFP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

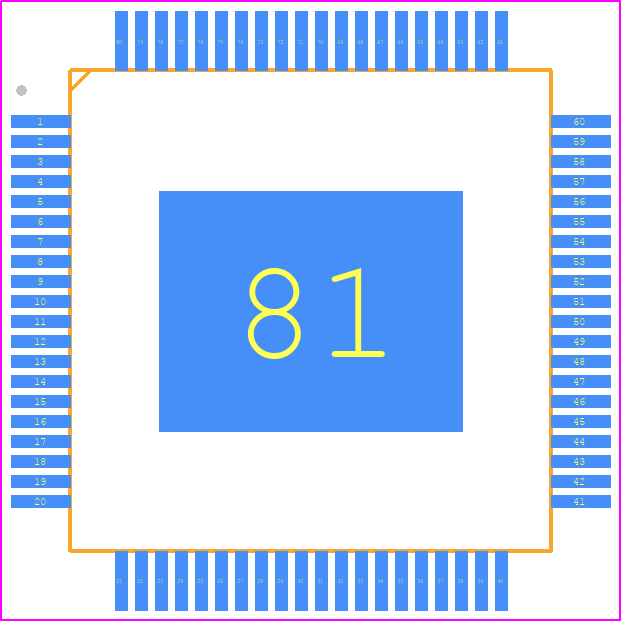

ADS58C23IPFP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFP
click to zoom
3D Models
ADS58C23IPFP - Texas Instruments - 3D model - Quad Flat Packages - PFP
click to zoom

ADS58C23IPFP Details

  • Manufacturer Part Number:

    ADS58C23IPFP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input-Max:

    3.45 V

  • JESD-30 Code:

    S-PQFP-G80

  • JESD-609 Code:

    e4

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    QFP80,.55SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

ADS58C23IPFP Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
  • The clock input should be a low-jitter, high-frequency clock signal. It's recommended to use a clock source with a jitter of less than 100 ps and a frequency of at least 2.5 times the sampling frequency. Additionally, the clock signal should be AC-coupled to the device.
  • The maximum input signal amplitude is not explicitly stated in the datasheet, but it's recommended to keep the input signal amplitude within the range of -0.5 V to 0.5 V to ensure optimal performance and prevent damage to the device.
  • The ADS58C23IPFP has an internal calibration mechanism that can be enabled through the SPI interface. It's recommended to follow the calibration procedure outlined in the datasheet to ensure optimal performance and accuracy.
  • The power consumption of the ADS58C23IPFP varies depending on the operating mode. In normal operation, the device consumes around 1.2 W. In standby mode, the power consumption is reduced to around 10 mW. The exact power consumption can be found in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS58C23IPFP Overview

Use the download button to access the ADS58C23IPFP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS58, or try a keyword search, such as Cellular Telephone Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
