Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog signals should be routed close to the ADC, and the digital signals should be routed away from the ADC. Additionally, the power supply lines should be decoupled with capacitors and ferrite beads to reduce noise.
To optimize the ADC's performance, you should consider factors such as the input signal frequency, amplitude, and impedance. You should also consider the ADC's clock frequency, sampling rate, and gain settings. Additionally, you may need to adjust the ADC's internal voltage reference, and consider using an external voltage reference if necessary.
The ADS6122IRHBT can handle input voltages up to 5.5V, but it's recommended to keep the input voltage within the specified range of 0V to 4.096V to ensure accurate conversions and prevent damage to the device.
The ADS6122IRHBT has an internal calibration circuit that can be used to calibrate the ADC. You can also use external calibration methods such as using a known voltage reference or a calibration signal. Additionally, you should consider the temperature range and other environmental factors that may affect the ADC's performance.
The recommended power-up sequence for the ADS6122IRHBT is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the ADC is properly powered up and configured before starting conversions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS6122IRHBT Overview

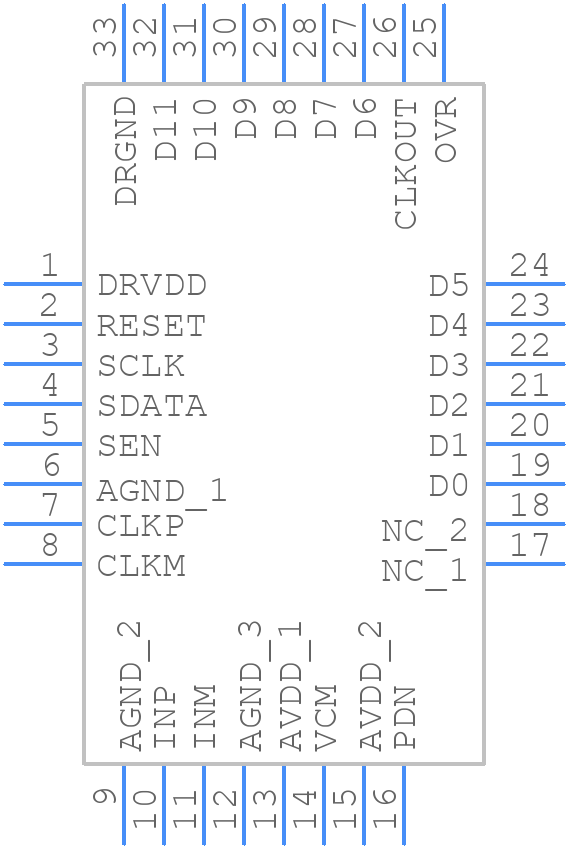

Use the download button to access the ADS6122IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS61,
or try a keyword search, such as Analog to Digital Converters
