Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADC close to the analog signal source. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins, and the analog input traces should be routed away from digital signals.
The ADS7029QDCURQ1 has an internal calibration mechanism, but it's recommended to perform an external calibration using a known reference voltage to achieve the best possible accuracy. The calibration process involves applying a known input voltage and reading the corresponding digital output code, then adjusting the offset and gain registers accordingly.
The ADS7029QDCURQ1 can achieve a maximum sampling rate of 1 MSPS, but this is limited by the clock frequency, analog input bandwidth, and the settling time of the ADC. The actual achievable sampling rate may be lower depending on the specific application and system design.
The ADS7029QDCURQ1 outputs 12-bit digital data in a binary two's complement format. The output data can be read through the SPI interface, and the format is MSB-first, with the most significant bit (MSB) being the sign bit. The output data can be processed and converted to a more readable format using a microcontroller or FPGA.
The ADS7029QDCURQ1 has a typical power consumption of 1.2 mA at 1 MSPS, but this can be reduced by operating the ADC at a lower sampling rate or using the power-down mode. Additionally, using a low-power microcontroller and optimizing the system design can help minimize overall power consumption.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS7029QDCURQ1 Overview

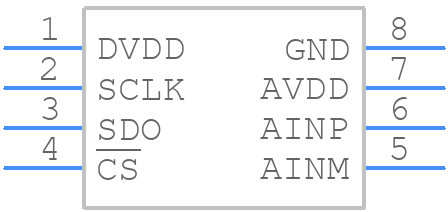

Use the download button to access the ADS7029QDCURQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS70,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
