Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog signals should be routed close to the ADC, and the digital signals should be routed away from the ADC. Additionally, the power supply lines should be decoupled with capacitors and ferrite beads to reduce noise.
To optimize the ADC's performance, you should consider factors such as the input signal frequency, amplitude, and impedance. You should also consider the ADC's clock frequency, sampling rate, and gain settings. Additionally, you may need to adjust the ADC's internal voltage reference, and consider using an external voltage reference if necessary.
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the ADC's internal circuitry is properly initialized and configured before the clock signal is applied.
The ADS7049QDCURQ1 outputs 12-bit digital data in a serial format. You will need to use a microcontroller or FPGA to receive and process the data. You may need to implement data buffering, filtering, and formatting depending on your system's requirements.
The ADS7049QDCURQ1 is specified to operate over a temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and you should consult the datasheet for specific temperature-related specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7049QDCURQ1 Overview

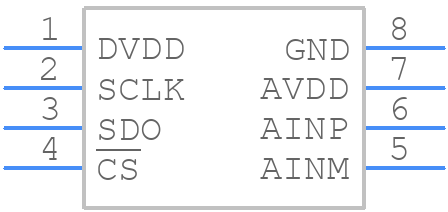

Use the download button to access the ADS7049QDCURQ1 schematic symbol, PCB footprint, and 3D model.
