ADS7066IYBHR - Texas Instruments

Description: 8-Channel Single ADC SAR 250ksps 16-bit Serial 16-Pin DSBGA T/R

Download ADS7066IYBHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

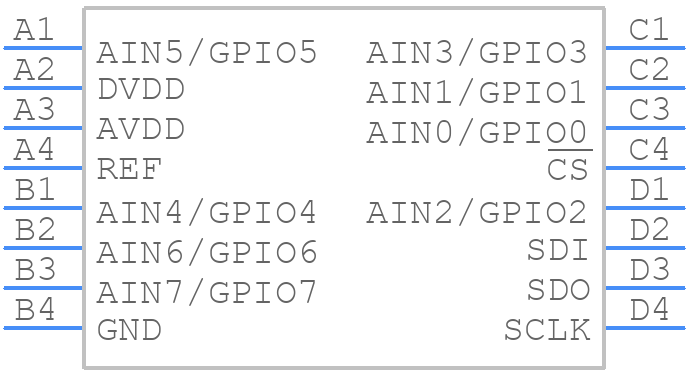

Symbol
ADS7066IYBHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7066IYBHR - Texas Instruments PCB footprint - BGA - BGA - YBH0016
click to zoom
3D Models
ADS7066IYBHR - Texas Instruments - 3D model - BGA - YBH0016
click to zoom

ADS7066IYBHR Details

  • Manufacturer Part Number:

    ADS7066IYBHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2020-05-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    3.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    1.6205 mm

  • Linearity Error-Max (EL):

    0.0061035%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max:

    1.56 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6205 mm

ADS7066IYBHR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide in the application note SLAA725, which recommends a star-ground configuration, separate analog and digital grounds, and careful routing of sensitive analog signals to minimize noise and coupling.
  • The ADS7066IYBHR has an internal calibration mechanism, but it's recommended to perform an external calibration using a known reference voltage to achieve the best possible accuracy. The calibration process involves writing to the device's calibration registers, which is described in the datasheet.
  • The maximum sampling rate of the ADS7066IYBHR is 500 kSPS, but it can be adjusted to lower rates to reduce power consumption. The power consumption increases with the sampling rate, and the device's power scaling feature can be used to optimize power consumption for the specific application.
  • The ADS7066IYBHR has a POR and BOR mechanism to ensure the device resets correctly during power-up and power-down sequences. The POR and BOR thresholds can be adjusted using external resistors, and the device's reset pin can be used to monitor the reset status.
  • The recommended operating temperature range for the ADS7066IYBHR is -40°C to 125°C. The device's performance, including accuracy and linearity, may degrade at extreme temperatures. It's essential to consider the operating temperature range when designing the system and to ensure proper thermal management.
