Description:Analog to Digital Converters - ADC Small 8-channel 140-kSPS 12-bit analog-to-digital converter (ADC) with I2C, GPIOs and CRC 16-WQFN -40 to 125
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout and routing guide, but it's essential to consult with a PCB design expert to ensure optimal performance.
To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and optimize the analog input signal conditioning. Additionally, consult the datasheet for specific recommendations on clock frequency, input range, and filtering.
The ADS7138IRTET outputs 16-bit data, which can be handled using a microcontroller or FPGA. Ensure proper synchronization and data alignment, and consider using a FIFO or buffer to handle data transfer. Consult the datasheet for specific timing and interface requirements.
To ensure EMC and reduce EMI, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and consider adding EMI filters or common-mode chokes. Consult the datasheet and relevant industry standards for specific recommendations.
The ADS7138IRTET has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat sinking, airflow, and thermal interface materials. Consult the datasheet for specific thermal characteristics and recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7138IRTET Overview

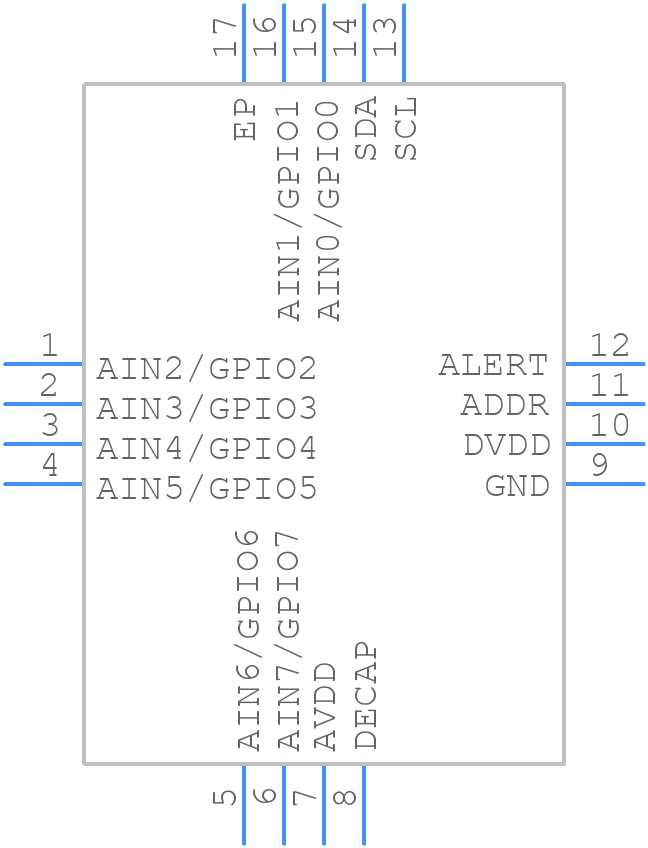

Use the download button to access the ADS7138IRTET schematic symbol, PCB footprint, and 3D model.
