Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, decouple the power supply with a 10uF capacitor and a 100nF capacitor in parallel.
Optimize the ADC's performance by selecting the correct gain setting, adjusting the sampling rate, and using the correct input range. Also, consider using the built-in calibration feature to improve accuracy. Consult the datasheet and application notes for specific guidance.
Power up the device in the following sequence: AVDD, DVDD, and then CLK. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
Use a FIFO or a buffer to handle the ADC's output data, and ensure that the data is read within the specified latency. Also, consider using the ADC's built-in error detection and correction features to ensure accurate conversions.
The ADS7138QRTERQ1 is rated for operation from -40°C to 125°C. Ensure good thermal conductivity by using a heat sink or a thermal pad, and avoid overheating the device. Consult the datasheet for thermal resistance and power dissipation specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7138QRTERQ1 Overview

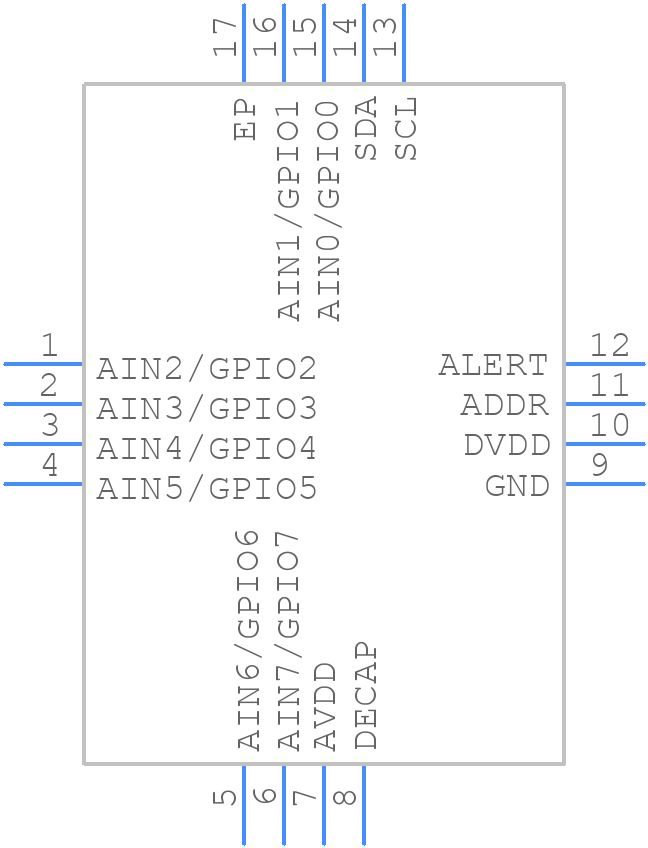

Use the download button to access the ADS7138QRTERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS71,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
