Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The input traces should be short and direct, and the reference voltage pin should be connected to a quiet, low-impedance source.
To optimize performance in noisy environments, use a low-pass filter at the input, ensure a good power supply decoupling, and consider using a shielded enclosure. Additionally, use the internal reference voltage and ensure a low-impedance connection to the reference pin.
The maximum sampling rate of the ADS7142IRUGR is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, and the device's power consumption increases with higher sampling rates.
The ADS7142IRUGR has an internal calibration mechanism. To calibrate, apply a known input voltage, and then use the device's calibration registers to adjust the offset and gain. The calibration process should be repeated for each input range and gain setting.
The power consumption of the ADS7142IRUGR depends on the sampling rate, voltage supply, and operating mode. Typically, the device consumes around 10-15 mW at 1 MSPS with a 3.3V supply voltage. However, this can increase to around 30-40 mW at higher sampling rates or with multiple channels enabled.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7142IRUGR Overview

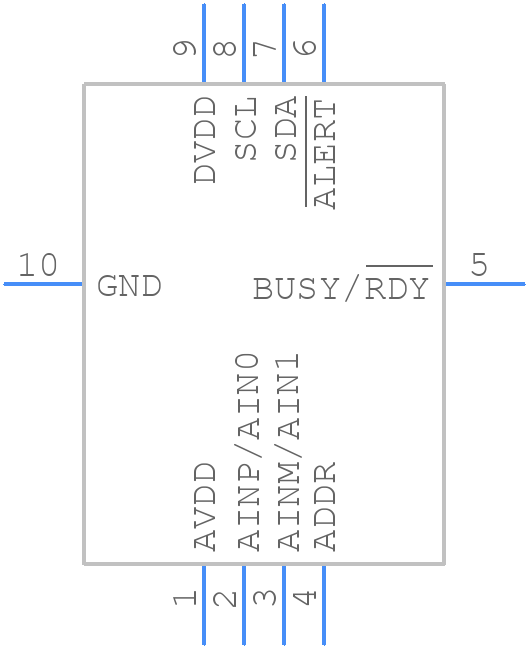

Use the download button to access the ADS7142IRUGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS71,
or try a keyword search, such as Analog to Digital Converters
