Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout and routing guide, but it's essential to follow good PCB design practices to minimize noise and ensure optimal performance.
To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper PCB layout, decoupling, and noise reduction techniques. Consult the datasheet and application notes for more information.
The ADS7142IRUGT can handle input voltages up to 5.5V, but the recommended input voltage range is 0V to VREF (typically 2.5V or 3.3V). Exceeding the maximum input voltage can damage the device.
The ADS7142IRUGT has an internal calibration mechanism. However, for optimal accuracy, it's recommended to perform an external calibration using a known input voltage source. Consult the datasheet and application notes for calibration procedures and guidelines.
The ADS7142IRUGT's power consumption varies depending on the operating mode and sampling rate. To reduce power consumption, consider using the low-power mode, reducing the sampling rate, and optimizing the system's power management. Consult the datasheet for power consumption specifications and guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7142IRUGT Overview

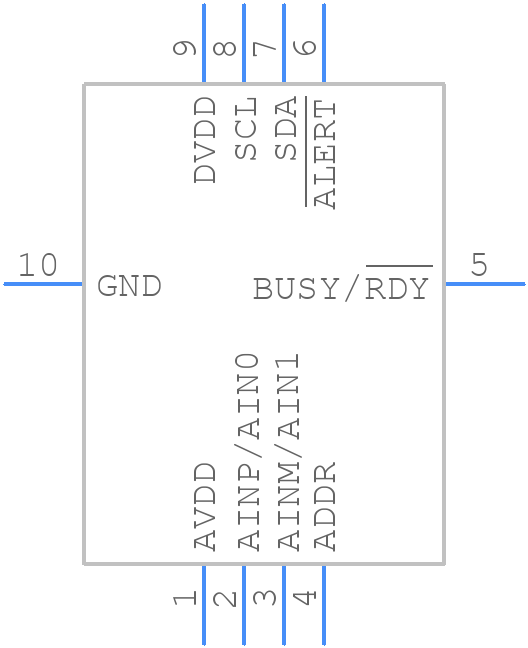

Use the download button to access the ADS7142IRUGT schematic symbol, PCB footprint, and 3D model.
