The recommended layout and routing for the ADS7229IPW involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS7229IPW in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are separated and that the digital noise is not coupled into the analog circuitry.
The maximum sampling rate of the ADS7229IPW is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system clock frequency, the conversion time, and the settling time of the input signal.
The ADS7229IPW does not require calibration. It has an internal calibration circuit that performs a self-calibration sequence during power-up. However, if the device is used in a system that requires calibration, an external calibration circuit can be implemented using the device's calibration pins.
The power consumption of the ADS7229IPW depends on the operating mode and the clock frequency. In normal operating mode, the typical power consumption is around 15 mW at 1 MSPS. In power-down mode, the typical power consumption is around 10 μW.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS7229IPW Overview

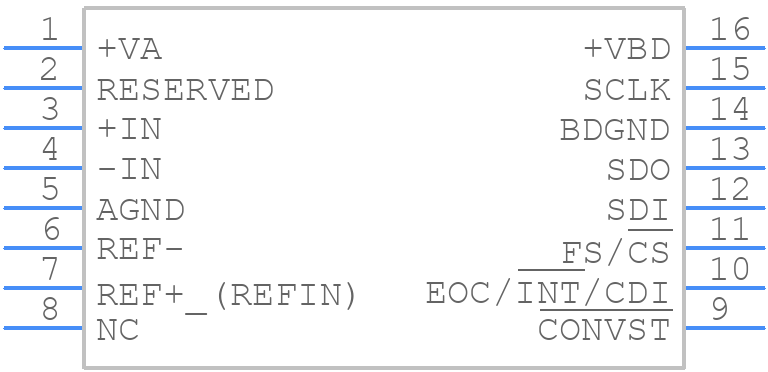

Use the download button to access the ADS7229IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS72,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
