The recommended layout and routing for the ADS7253IRTET involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS7253IRTET in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are properly separated and that the power supply is well-regulated.
The maximum sampling rate of the ADS7253IRTET is 1 MSPS, but this can be affected by the clock frequency, the input signal frequency, and the system noise. It's recommended to consult the datasheet and application notes for more information on achieving the maximum sampling rate.
The ADS7253IRTET does not require calibration, but it's recommended to perform a system calibration to ensure optimal performance. This involves adjusting the gain and offset of the ADC to match the system requirements. Consult the datasheet and application notes for more information on system calibration.
The power consumption of the ADS7253IRTET varies depending on the operating mode and the clock frequency. In normal operation, the typical power consumption is around 15 mW, but this can increase to around 30 mW in high-speed mode. Consult the datasheet for more information on power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7253IRTET Overview

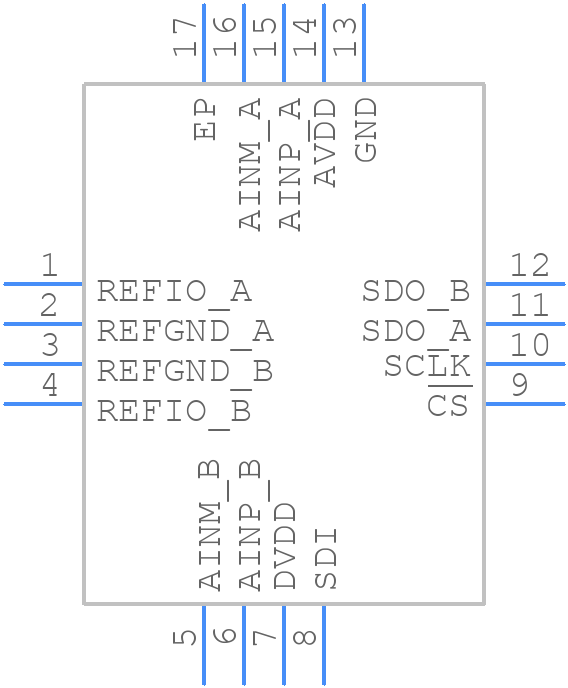

Use the download button to access the ADS7253IRTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS72,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
