Texas Instruments provides a recommended layout and routing guide in the ADS7279IPWG4 datasheet (Section 10.1) and in the application note 'ADS7279 Layout and Routing Guidelines' (SLAA725). It's essential to follow these guidelines to minimize noise, ensure signal integrity, and achieve optimal performance.
The ADS7279IPWG4 can be configured for differential or pseudo-differential input modes by setting the appropriate values for the INMODE[1:0] pins. For differential mode, set INMODE[1:0] = 00, and for pseudo-differential mode, set INMODE[1:0] = 01 or 10. Refer to the datasheet (Section 7.3.1) for more information.
The maximum sampling rate for the ADS7279IPWG4 is 1 MSPS. To achieve this rate, ensure that the clock frequency is set to 32 MHz, and the SCLK pin is driven with a 50% duty cycle clock signal. Additionally, optimize the layout and routing to minimize noise and ensure signal integrity.
The ADS7279IPWG4 outputs data in a 16-bit, two's complement format. The byte ordering can be configured as either big-endian or little-endian by setting the DBYTE pin high or low, respectively. Refer to the datasheet (Section 7.3.3) for more information on output data format and byte ordering.
The power consumption of the ADS7279IPWG4 depends on the operating mode and clock frequency. In normal operation, the device consumes around 12 mW. To reduce power consumption, consider using the power-down mode (PDWN pin = 0) or reducing the clock frequency. Refer to the datasheet (Section 6.2) for more information on power consumption and power-saving modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7279IPWG4 Overview

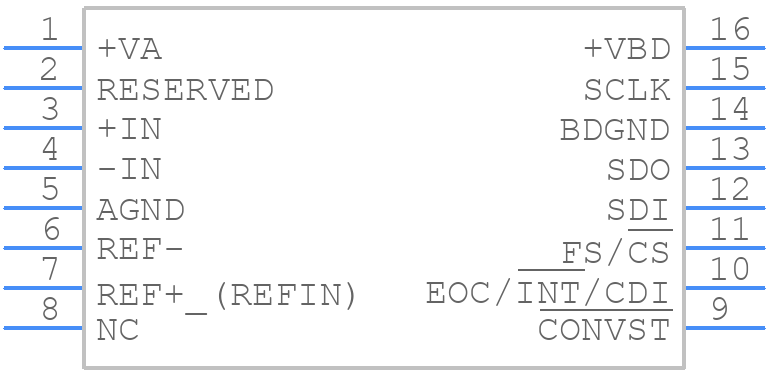

Use the download button to access the ADS7279IPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS72,
or try a keyword search, such as Analog to Digital Converters
