Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Also, use short and direct traces for the analog inputs, and avoid routing digital signals near the analog inputs.
Optimize the ADC's performance by selecting the correct gain, offset, and sampling rate for your application. Also, ensure proper filtering and signal conditioning of the input signal, and consider using the ADC's built-in features such as the programmable gain amplifier and digital filter.
The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures proper initialization of the ADC and prevents any potential latch-up conditions.
The ADS7279IPWR outputs 18-bit data, which can be read through the SPI interface. The output data is in two's complement format, and the user needs to handle the data accordingly in their microcontroller or FPGA.
The maximum sampling rate of the ADS7279IPWR is 1 MSPS, but this can be affected by the system clock frequency, the conversion mode, and the number of channels being converted.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7279IPWR Overview

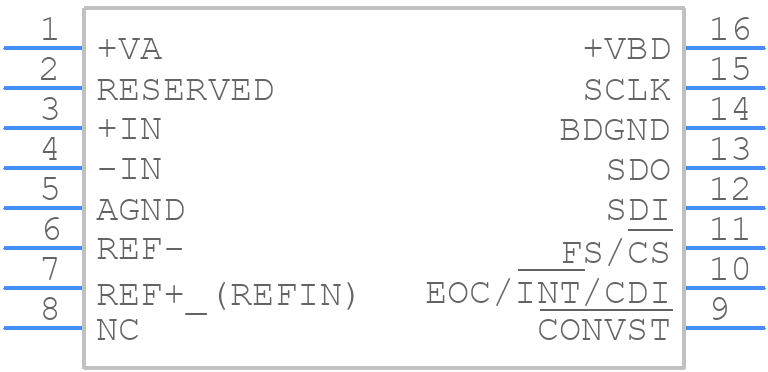

Use the download button to access the ADS7279IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS72,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
