The recommended layout and routing for the ADS7280IPWR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS7280IPWR in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are separated and that the digital noise is not coupled into the analog circuitry.
The maximum sampling rate of the ADS7280IPWR is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system clock frequency, the analog input bandwidth, and the digital interface used.
Yes, the ADS7280IPWR can be used with a 3.3V supply voltage. However, the device's performance may be affected, and the maximum sampling rate may be reduced. It's recommended to consult the datasheet and application notes for specific guidance on using the device with a 3.3V supply voltage.
The ADS7280IPWR has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. Consult the datasheet and application notes for specific guidance on the calibration process.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7280IPWR Overview

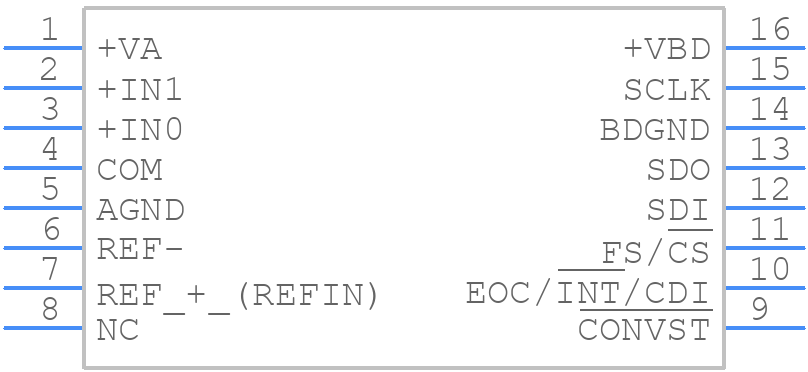

Use the download button to access the ADS7280IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS72,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
