The ADS774JU/1K requires careful PCB layout and routing to minimize noise and ensure accurate conversions. TI recommends using a 4-layer PCB with a dedicated analog ground plane, keeping analog and digital signals separate, and using short, direct traces for the analog inputs. Additionally, decoupling capacitors should be placed close to the device.
The ADS774JU/1K has an internal 2.5V reference voltage, but it can also be overridden with an external reference. When using an external reference, ensure it is stable and has a low output impedance. The internal reference can be disabled by connecting the REFOUT pin to AVDD. Using an external reference may affect the device's accuracy and linearity.
The ADS774JU/1K can operate with a clock frequency between 1 MHz and 20 MHz. The recommended clock frequency is 10 MHz, which provides the best balance between conversion speed and noise performance. Using a different clock frequency may affect the device's conversion speed, noise performance, and power consumption.
The ADS774JU/1K requires a power-on reset (POR) circuit to ensure proper device initialization. A POR circuit ensures that the device is properly reset after power-up. Without a POR circuit, the device may not function correctly, and conversions may be inaccurate or unreliable.
The ADS774JU/1K requires a proper input driver to ensure accurate conversions. A recommended approach is to use a low-impedance driver, such as an op-amp, to drive the analog inputs. Without a proper input driver, the device may not be able to accurately convert the input signal, leading to errors and inaccuracies.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS774JU/1K Overview

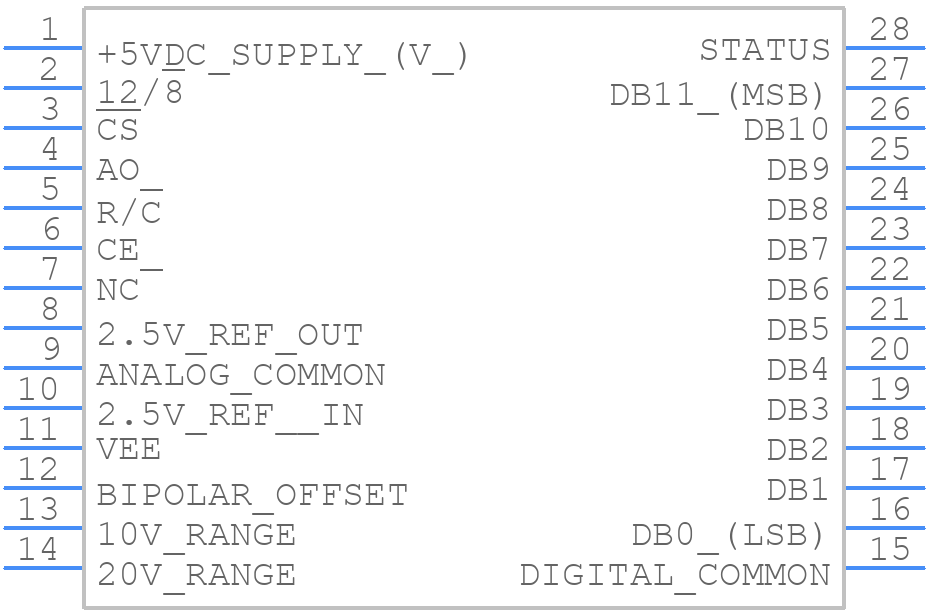

Use the download button to access the ADS774JU/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS77,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
