Texas Instruments provides a recommended layout and routing guide in the ADS7854IPW datasheet, application note, and evaluation module documentation. It's essential to follow these guidelines to ensure proper operation, minimize noise, and reduce electromagnetic interference (EMI).
To ensure proper signal integrity, use a low-jitter clock source, and route the CLKIN signal as a differential pair with a controlled impedance of 50-75 ohms. Also, use a clock buffer or repeater if the clock signal needs to be distributed over a long distance.
Use a combination of ceramic and electrolytic capacitors to decouple the power supply pins (AVDD, DVDD, and OVDD). Place these capacitors close to the device pins and use a low-ESR capacitor for the analog power supply (AVDD). Additionally, consider adding a ferrite bead or a pi-filter to filter out high-frequency noise.
Consult the ADS7854IPW datasheet and application notes for guidance on configuring the device for your specific application. You may need to adjust the gain, offset, and clock settings to optimize performance. You can also use the TI-provided evaluation module and software development kit (SDK) to experiment with different configurations.
The ADS7854IPW has a maximum junction temperature (TJ) of 150°C. Ensure good thermal conductivity by using a heat sink, thermal pad, or thermal interface material (TIM) on the exposed pad. Also, consider the thermal resistance of the PCB and the ambient temperature to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7854IPW Overview

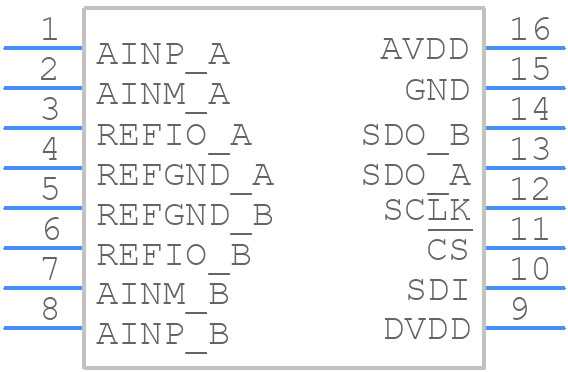

Use the download button to access the ADS7854IPW schematic symbol, PCB footprint, and 3D model.
