Texas Instruments provides a layout and routing guide in the application note SLAA554, which recommends separating analog and digital signals, using a solid ground plane, and minimizing trace lengths and loops.
The ADS7854IPWR datasheet provides a detailed section on application and layout guidelines, including recommendations for input signal conditioning, clock signal quality, and power supply decoupling. Additionally, TI's ADC Performance Calculator tool can help optimize the ADC's performance for specific applications.
The ADS7854IPWR can achieve a maximum sampling rate of 1 MSPS, but this is limited by the clock frequency, input signal bandwidth, and the number of channels being converted. The datasheet provides a detailed table of sampling rates vs. clock frequencies and channel configurations.
The ADS7854IPWR outputs 16-bit data in a serial format, and the recommended data format is twos-complement binary. The datasheet provides a detailed description of the output data format, and TI's ADC data converter software development kit (SDK) provides example code for handling the output data.
The ADS7854IPWR has a typical power consumption of 15 mW at 1 MSPS, but this can be minimized by reducing the clock frequency, using the power-down mode, and optimizing the power supply voltage. The datasheet provides a detailed power consumption table and recommendations for power management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7854IPWR Overview

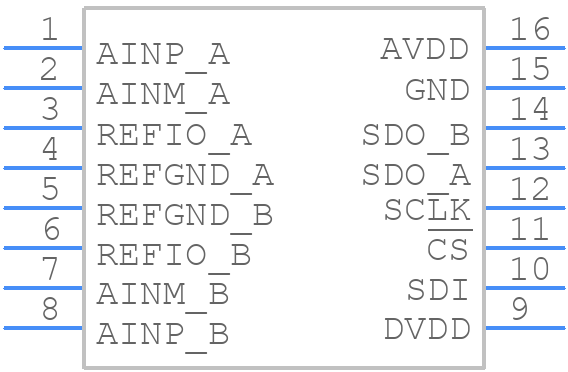

Use the download button to access the ADS7854IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
