Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter capacitor between the analog input and ground to reduce noise.
The ADS7862YB/250 has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence. Additionally, the user can perform an external calibration by applying a known voltage to the input and adjusting the offset and gain registers accordingly.
Texas Instruments recommends powering up the device in the following sequence: VDD, VREF, and then CLKIN. This ensures that the internal voltage regulators are powered up before the analog circuitry, preventing latch-up or damage.
The ADS7862YB/250 outputs data in a 16-bit parallel format. To ensure accurate and reliable data transfer, use a synchronous clocking scheme, and ensure that the data is latched on the rising edge of the clock signal. Also, use a pull-up resistor on the data lines to prevent bus contention.
To reduce power consumption, use the power-down mode by setting the PD pin high. This will reduce the power consumption to a standby mode. Additionally, use a low-power mode by setting the LP pin high, which will reduce the power consumption during conversions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS7862YB/250 Overview

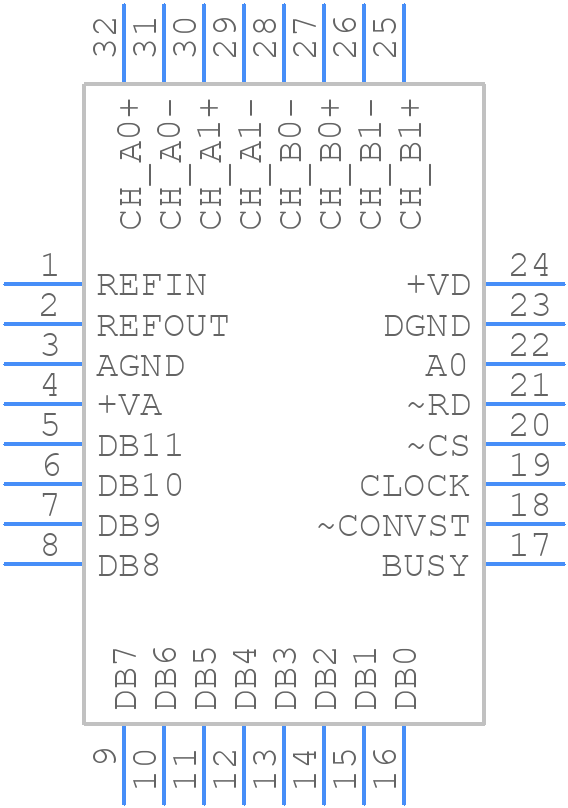

Use the download button to access the ADS7862YB/250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78,
or try a keyword search, such as Analog to Digital Converters
