ADS7863ARGER - Texas Instruments

Description: Analog to Digital Converters - ADC Dual 2MSPS 12-Bit Simult Sampl SAR ADC

Download ADS7863ARGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

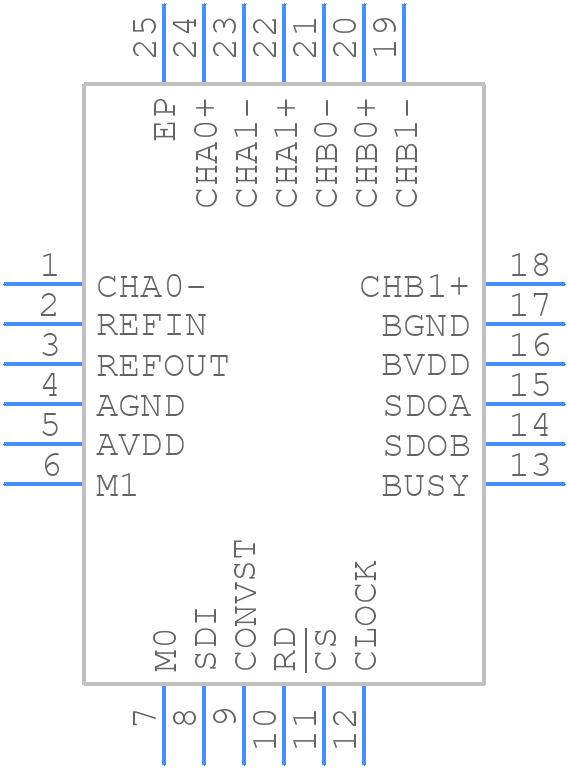

ADS7863ARGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7863ARGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H-021
click to zoom
3D Models
ADS7863ARGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H-021
click to zoom

ADS7863ARGER Details

  • Manufacturer Part Number:

    ADS7863ARGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0305%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS7863ARGER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the application note SLAA523, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces.
  • The ADS7863ARGER has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing specific values to the calibration registers, and then performing a self-calibration sequence. The details of the calibration process are provided in the device datasheet and the application note SLAA524.
  • The maximum sampling rate of the ADS7863ARGER is 250 kSPS. The power consumption of the device increases with the sampling rate, and can be estimated using the power consumption formula provided in the datasheet. At the maximum sampling rate, the power consumption is approximately 15 mW.
  • The ADS7863ARGER can be interfaced with a microcontroller using the SPI or I2C communication protocols. The device has a dedicated SPI interface, and the I2C interface can be implemented using the GPIO pins. The recommended communication protocols and interface circuits are provided in the application note SLAA525.
  • The ADS7863ARGER has a maximum operating temperature range of -40°C to 125°C. The device performance can be affected by temperature, and the datasheet provides temperature coefficients for the various device parameters. The application note SLAA526 provides guidelines for thermal management and heat sinking.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS7863ARGER Overview

Use the download button to access the ADS7863ARGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
