ADS7947SRTET - Texas Instruments

Description: 12-Bit, 2 MSPS, Dual Channel, Pseudo-differential uPower Serial SAR ADC

Download ADS7947SRTET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

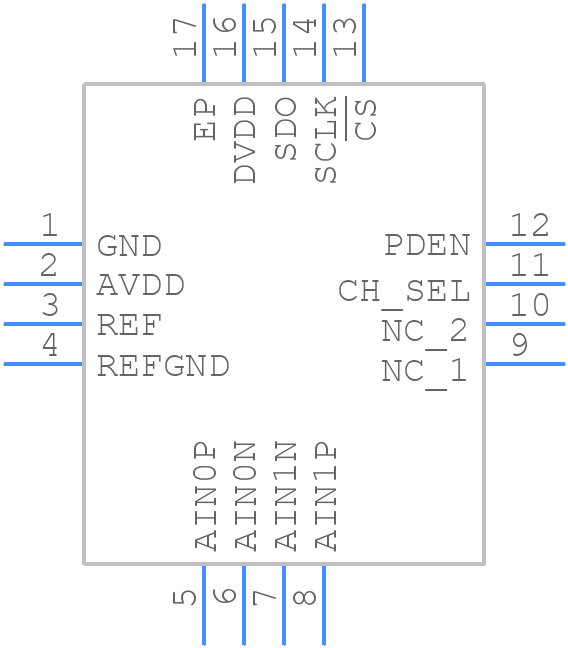

ADS7947SRTET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7947SRTET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE0016C
click to zoom
3D Models
ADS7947SRTET - Texas Instruments - 3D model - Quad Flat No-Lead - RTE0016C
click to zoom

ADS7947SRTET Details

  • Manufacturer Part Number:

    ADS7947SRTET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS7947SRTET Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the ADS7947SRTET involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the ADS7947SRTET in noisy environments, it is recommended to use a low-pass filter at the analog input, use a shielded cable for the analog input, and use a common-mode choke to reduce electromagnetic interference (EMI). Additionally, it is recommended to use a decoupling capacitor at the power supply pins and to use a low-noise power supply.
  • The maximum sampling rate of the ADS7947SRTET is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system clock frequency and the conversion time of the ADC.
  • The ADS7947SRTET does not require calibration. It has an internal calibration circuit that calibrates the ADC during power-up. However, it is recommended to perform a system-level calibration to ensure the accuracy of the measurement system.
  • The power consumption of the ADS7947SRTET depends on the operating mode and the sampling rate. In normal operation, the power consumption is typically around 15 mW. In power-down mode, the power consumption is typically around 1 μW.
