Texas Instruments provides a recommended layout and routing guide in the ADS7950SRGET evaluation module user's guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
The ADS7950SRGET datasheet provides a general guideline for the analog input filter. However, the optimal filter design depends on the specific application's frequency range, noise environment, and signal amplitude. Engineers can use tools like the TI FilterPro software or consult with TI's application engineers for customized filter design support.
Clock jitter can affect the ADS7950SRGET's performance, particularly in high-frequency applications. TI recommends using a low-jitter clock source (<100 ps RMS) to ensure optimal performance. Engineers can also consider using a clock jitter attenuator or a phase-locked loop (PLL) to reduce clock jitter.
To ensure reliable communication over the SPI interface, engineers should follow the SPI protocol guidelines, use a pull-up resistor on the CS pin, and ensure proper signal termination. Additionally, TI recommends using a SPI interface analyzer tool to debug and optimize the communication protocol.
The ADS7950SRGET is a high-speed device that can generate heat. Engineers should ensure proper thermal management by providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. TI provides thermal design guidelines in the ADS7950SRGET datasheet and thermal modeling tools like the TI Thermal Calculator.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS7950SRGET Overview

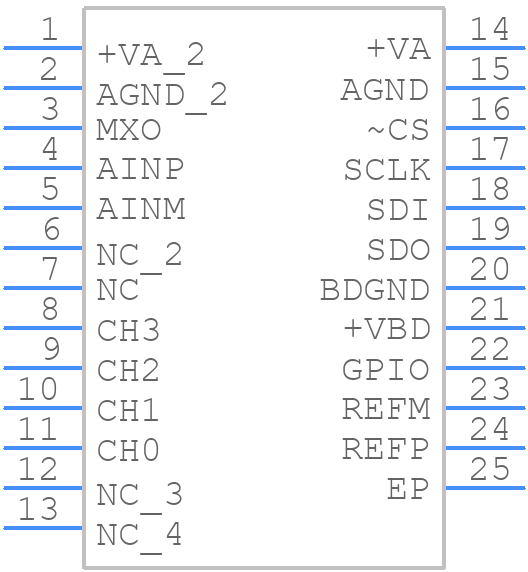

Use the download button to access the ADS7950SRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
