To minimize noise and ensure accurate conversions, it is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital traces, and use a low-ESR capacitor for the AVDD pin.
To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate to match your application's requirements, use the internal reference or an external reference with low noise and high stability, and ensure proper PCB layout and decoupling.
The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin, and then the digital interface (e.g., SPI or I2C). This ensures that the analog circuitry is powered up before the digital interface.
The ADS7951SBDBT outputs 16-bit data in a 2's complement format. To handle the output data, ensure that your microcontroller or processor can handle 16-bit signed integers, and consider using a FIFO or buffer to handle the data stream.
The ADS7951SBDBT can achieve a maximum sampling rate of 1 MSPS (million samples per second) in the fast conversion mode. However, the actual sampling rate may be limited by the system's clock frequency, the conversion mode, and the interface mode.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7951SBDBT Overview

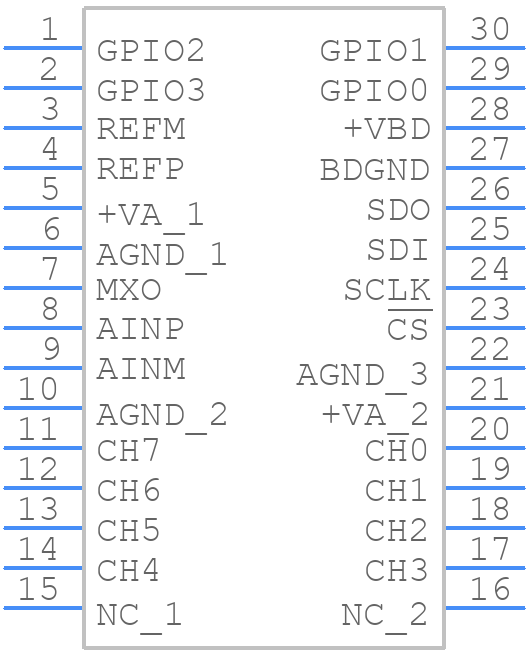

Use the download button to access the ADS7951SBDBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
