Texas Instruments provides a layout and routing guide in the ADS7951SBDBTG4 evaluation module user's guide, which includes recommendations for component placement, trace routing, and grounding to minimize noise and ensure accurate conversions.
The ADS7951SBDBTG4 has an internal calibration circuit that can be used to calibrate the device. Additionally, Texas Instruments provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers to achieve the highest accuracy.
The maximum sampling rate of the ADS7951SBDBTG4 is 2 MSPS (mega-samples per second), but this can be limited by the system clock frequency, the conversion mode, and the interface mode. Refer to the datasheet for more information on the sampling rate limitations.
Yes, the ADS7951SBDBTG4 can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple input channels. However, the device's conversion rate and power consumption should be considered when designing a multi-channel application.
The ADS7951SBDBTG4 has built-in error detection and reporting mechanisms, such as the OVERRUN and BUSY flags. The device also has a status register that can be used to detect and handle errors and exceptions. Refer to the datasheet for more information on error handling and exception detection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7951SBDBTG4 Overview

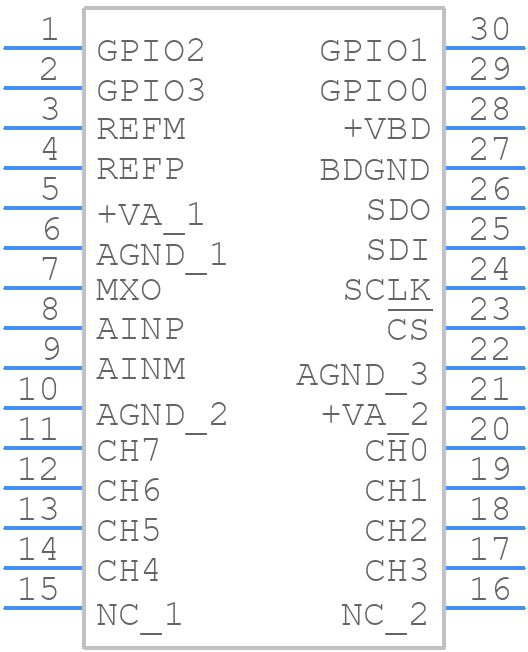

Use the download button to access the ADS7951SBDBTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
