Texas Instruments provides a layout and routing guide in the ADS7951SDBTG4 evaluation module user's guide, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure accurate readings.
The ADS7951SDBTG4 has an internal calibration circuit that can be used to calibrate the device. Additionally, Texas Instruments provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers to achieve the highest accuracy.
The maximum sampling rate of the ADS7951SDBTG4 is 2 MSPS (mega-samples per second), but this can be limited by the system clock frequency, the conversion mode, and the interface mode. The datasheet provides more information on the sampling rate limitations.
Yes, the ADS7951SDBTG4 can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple input channels. Texas Instruments provides application notes and reference designs for multi-channel applications.
The power consumption of the ADS7951SDBTG4 depends on the operating mode, sampling rate, and supply voltage. The datasheet provides power consumption specifications, and Texas Instruments provides application notes on power-saving techniques, such as using the low-power mode and optimizing the system clock frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7951SDBTG4 Overview

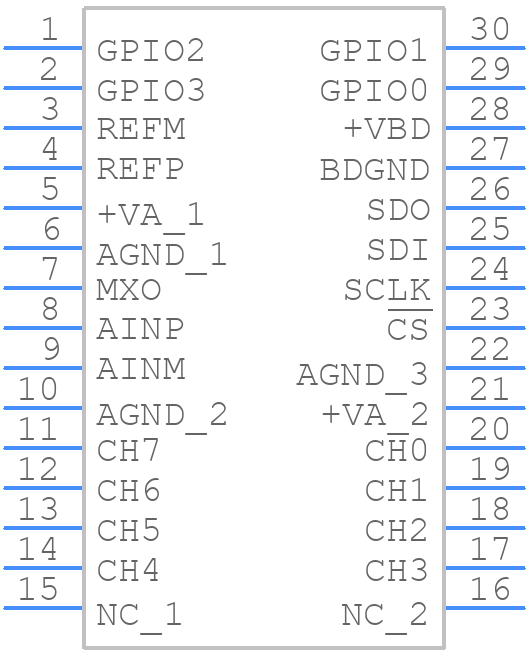

Use the download button to access the ADS7951SDBTG4 schematic symbol, PCB footprint, and 3D model.
