ADS7951SDBTR - Texas Instruments

Description: Analog to Digital Converters - ADC 12B 1MSPS 8Ch Sgl ended micro Pwr

Download ADS7951SDBTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

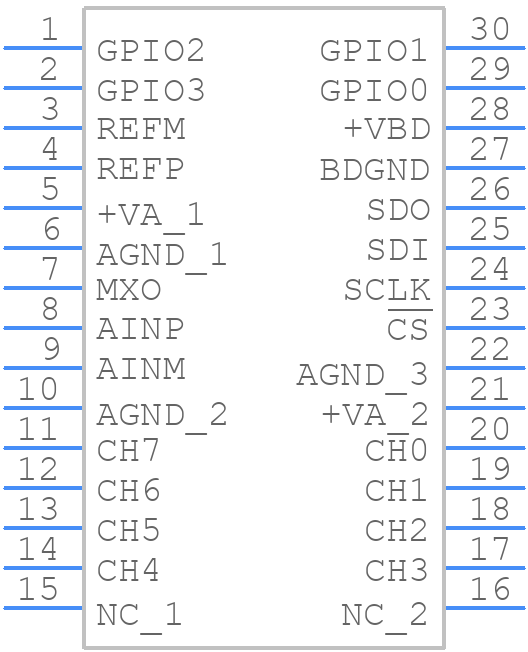

Symbol
ADS7951SDBTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7951SDBTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0030A
click to zoom
3D Models
ADS7951SDBTR - Texas Instruments - 3D model - Small Outline Packages - DBT0030A
click to zoom

ADS7951SDBTR Details

  • Manufacturer Part Number:

    ADS7951SDBTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    30

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADS7951SDBTR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital traces separate. Additionally, use a low-ESR capacitor for the AVDD pin and a 0.1uF capacitor for the REF pin. Route the analog input traces away from the digital traces and keep them as short as possible.
  • The ADS7951SDBTR has a power-on reset (POR) circuit that ensures the device is in a valid state after power-up. However, it's recommended to add an external reset circuit to ensure the device is in a valid state after power-up. A 10kΩ pull-up resistor on the RESET pin to AVDD and a 0.1uF capacitor from RESET to GND can be used.
  • The recommended clock frequency for the ADS7951SDBTR is between 10MHz to 20MHz. The conversion rate is dependent on the clock frequency, with a higher clock frequency resulting in a faster conversion rate. However, a higher clock frequency also increases the power consumption.
  • The ADS7951SDBTR outputs 16-bit data in a serial format. The output data is in two's complement format, with the most significant bit (MSB) first. The data is output on the DOUT pin, and the data is valid on the falling edge of the SCLK pin.
  • The recommended input signal range for the ADS7951SDBTR is between 0V to VREF (2.5V or 5V). The input signal range affects the conversion accuracy, with a smaller input range resulting in higher accuracy. However, a smaller input range also reduces the dynamic range of the converter.
