To minimize noise and ensure accurate conversions, it is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital signals, and use a low-impedance power supply.
To optimize the ADC's performance, consider the following: choose the correct input range and gain setting, optimize the clock frequency and sampling rate, use the correct analog input configuration, and implement proper digital filtering and averaging techniques.
The ADS7953SBDBT is specified to operate up to 125°C. However, high temperatures can affect the ADC's accuracy, noise performance, and long-term reliability. Ensure proper thermal management, and consider the device's thermal characteristics and reliability data when designing for high-temperature applications.
To ensure EMC and reduce EMI, use a shielded enclosure, keep the ADC and associated circuitry away from high-frequency sources, use a common-mode choke or ferrite bead on the analog input lines, and follow proper PCB layout and grounding techniques.
The ADS7953SBDBT requires a specific power-on and power-down sequencing to ensure proper operation. The recommended sequence is: VDD, AVDD, and then CLKIN. During power-down, the sequence should be reversed. Refer to the datasheet for specific timing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7953SBDBT Overview

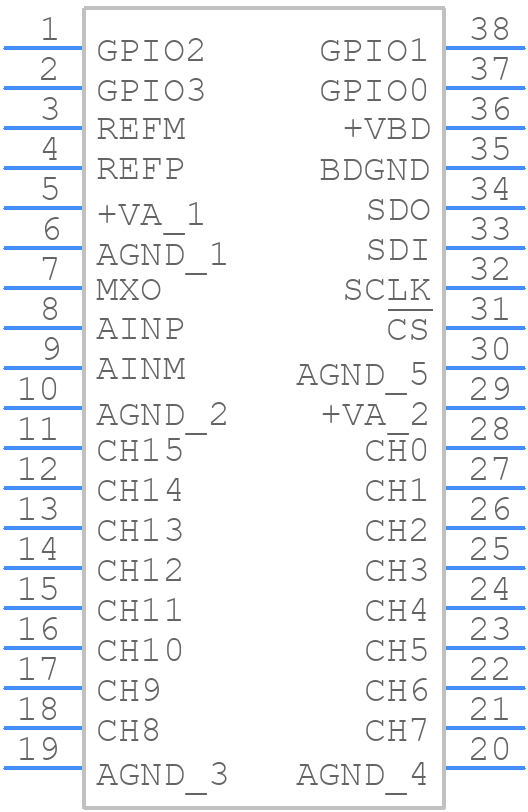

Use the download button to access the ADS7953SBDBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
