To minimize noise and ensure accurate conversions, it is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital signals, and use a low-impedance source for the analog input.
To optimize performance, ensure that each ADC has its own separate analog input and reference voltage, and that the analog inputs are not shared between ADCs. Also, consider using a separate power supply for each ADC, and ensure that the system's power supply is well-regulated and low-noise.
The recommended clock frequency for the ADS7953SRHBR is between 1 MHz and 20 MHz. A higher clock frequency can improve the converter's throughput, but may also increase power consumption and noise sensitivity. A lower clock frequency can reduce power consumption, but may also reduce the converter's throughput.
The ADS7953SRHBR has built-in error detection and correction mechanisms, such as overflow and underflow flags. The device also has a programmable error threshold, which can be set to detect and correct errors. Additionally, the device's interrupt system can be used to notify the system of errors and exceptions.
The ADS7953SRHBR has a built-in calibration mechanism that can be initiated through the device's control registers. Calibration should be performed during device initialization, and may need to be repeated periodically depending on the system's operating conditions and requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7953SRHBR Overview

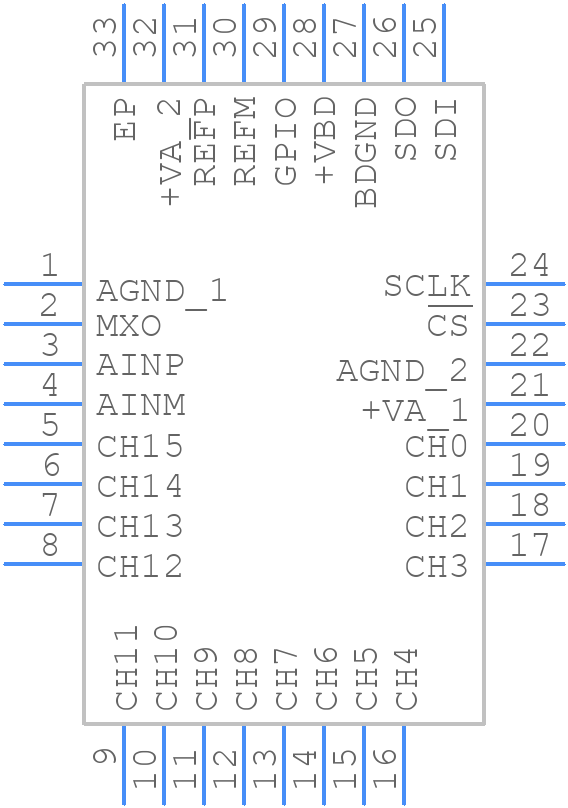

Use the download button to access the ADS7953SRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
