Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device.
To minimize EMI, use a low-inductance path for the digital output traces, and consider using a series termination resistor (e.g., 22-33 ohms) at the output of the device. Additionally, use a shielded cable or a twisted pair for the digital output signals, and keep the digital output signals away from sensitive analog circuits.
The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD), and then the clock signal. This sequence helps to ensure that the device powers up correctly and avoids latch-up or other issues.
The ADS7954SRGET has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers. Texas Instruments provides a calibration procedure in the device's datasheet and application notes.
The maximum sampling rate of the ADS7954SRGET is 2 MSPS. The sampling rate affects the device's power consumption, with higher sampling rates resulting in higher power consumption. The device's power consumption can be estimated using the formula provided in the datasheet, which takes into account the sampling rate, supply voltage, and other factors.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS7954SRGET Overview

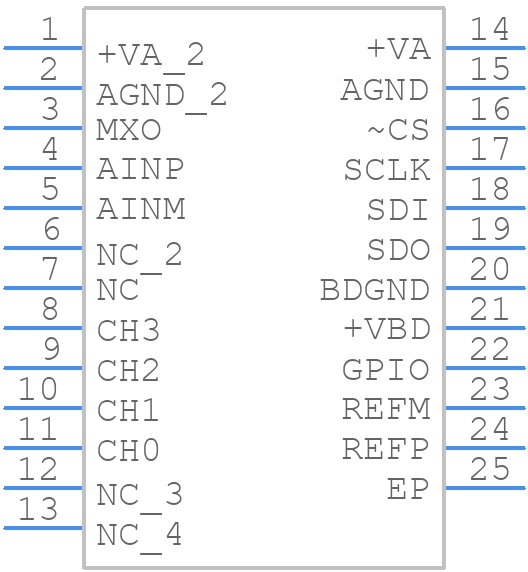

Use the download button to access the ADS7954SRGET schematic symbol, PCB footprint, and 3D model.
