Texas Instruments provides a layout and routing guide in the ADS7956QDBTRQ1 evaluation module user's guide, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure accurate readings.
The ADS7956QDBTRQ1 does not require calibration, as it is a self-calibrating ADC. However, it's recommended to follow the recommended layout and routing guidelines, and to ensure that the input signals are within the specified range to achieve the highest accuracy.
The maximum sampling rate of the ADS7956QDBTRQ1 is 2 MSPS (mega-samples per second). However, the actual sampling rate may be limited by the system clock frequency, input signal bandwidth, and other system-level factors.
Yes, the ADS7956QDBTRQ1 is a 16-bit, 6-channel ADC, which means it can be used in a multi-channel application. However, the device requires a separate analog input for each channel, and the user must ensure that the input signals are properly multiplexed and routed to the ADC.
The power consumption of the ADS7956QDBTRQ1 is typically around 35 mW at a sampling rate of 2 MSPS. To minimize power consumption, the user can reduce the sampling rate, use the device's power-down mode, and optimize the system-level design to minimize power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7956QDBTRQ1 Overview

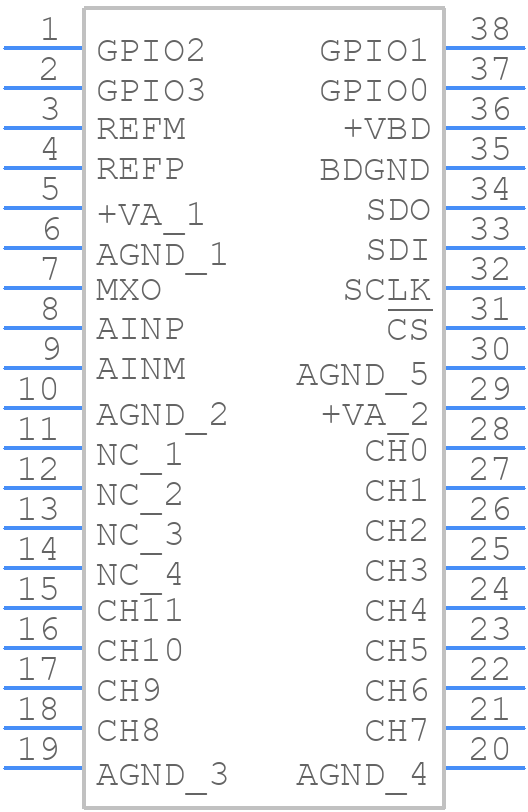

Use the download button to access the ADS7956QDBTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
