Texas Instruments provides a layout guide in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using differential pairs for clock and data lines.
The clock input should be driven differentially, and the clock signal should be terminated with a 100-ohm resistor to match the impedance of the device. Additionally, the clock signal should be filtered to remove high-frequency noise.
The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures that the device is properly initialized and configured.
To optimize performance in a noisy environment, use shielding, filtering, and decoupling to reduce electromagnetic interference (EMI). Additionally, use a low-noise power supply, and consider using a ferrite bead or common-mode choke to filter the clock signal.
The maximum clock frequency is 100 MHz, but it's recommended to use a clock frequency of 50 MHz or less to ensure optimal performance and minimize jitter.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7956SDBTR Overview

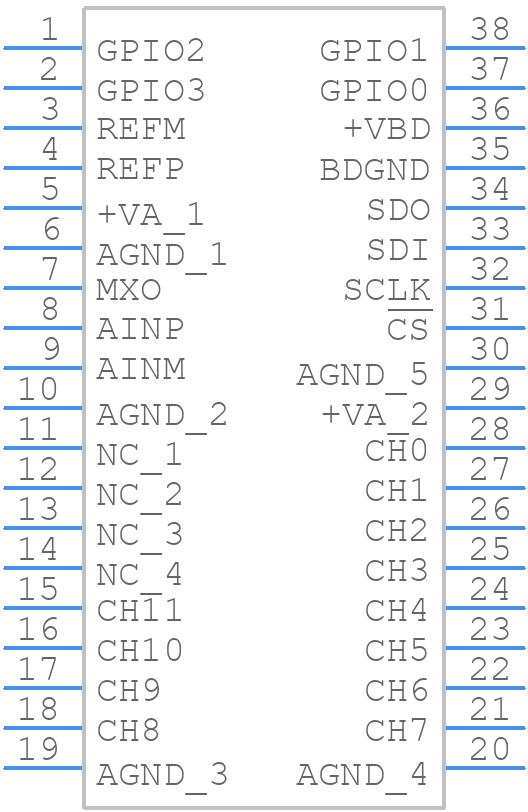

Use the download button to access the ADS7956SDBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
