Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device.
The ADS7957QDBTRQ1 has an internal calibration circuit that is enabled by default. However, it's recommended to perform an external calibration using an external voltage reference and a calibration resistor to ensure optimal performance. The calibration procedure is outlined in the datasheet.
The maximum sampling rate of the ADS7957QDBTRQ1 is 2 MSPS. However, the power consumption increases with the sampling rate. At 2 MSPS, the power consumption is approximately 35 mW. Reducing the sampling rate can help reduce power consumption, but it may also affect the accuracy of the conversions.
The ADS7957QDBTRQ1 outputs 16-bit digital data in a serial format. The output data is in two's complement format, with the most significant bit (MSB) first. The data is output on the DOUT pin, and the clock signal is output on the SCLK pin. The data is valid on the rising edge of the SCLK signal.
The recommended power supply voltage for the ADS7957QDBTRQ1 is 3.3V, with a tolerance of ±10%. Decoupling capacitors of 0.1 μF and 10 μF should be placed close to the device, with the 0.1 μF capacitor connected between the AVDD and AGND pins, and the 10 μF capacitor connected between the DVDD and DGND pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7957QDBTRQ1 Overview

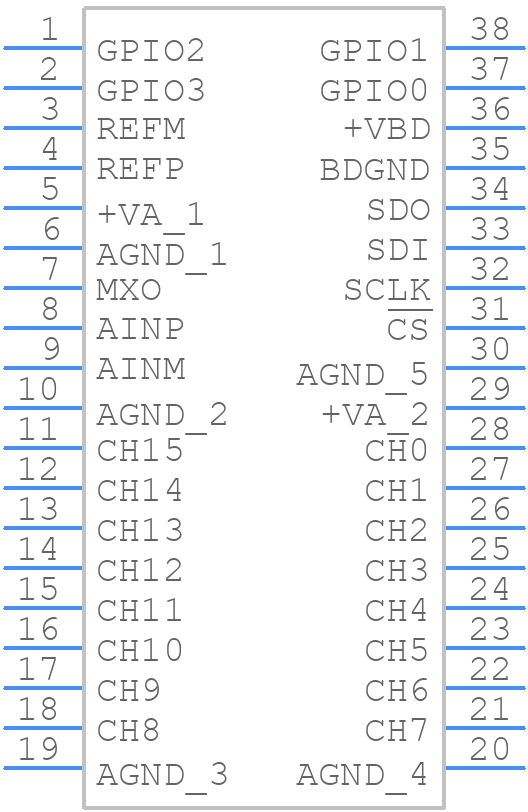

Use the download button to access the ADS7957QDBTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
