Texas Instruments provides a layout and routing guide in the application note SLAA544, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The ADS7961QDBTRQ1 has an internal calibration circuit that can be enabled through the CAL pin. The calibration process involves shorting the CAL pin to VREF, applying a known input voltage, and then reading the output code. The calibration data can then be stored in an external EEPROM or microcontroller.
The maximum sampling rate of the ADS7961QDBTRQ1 is 500 kSPS, but this can be limited by the clock frequency, conversion mode, and other factors. The datasheet provides a detailed table of sampling rates for different clock frequencies and conversion modes.
Yes, the ADS7961QDBTRQ1 can operate with a supply voltage as low as 2.7V, but the analog input range and reference voltage may need to be adjusted accordingly. The datasheet provides a table of recommended operating conditions for different supply voltages.
The ADS7961QDBTRQ1 outputs 16-bit data in a serial format, which can be read through a SPI-compatible interface. The datasheet provides a detailed description of the output data format, including the bit order, data alignment, and clock polarity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS7961QDBTRQ1 Overview

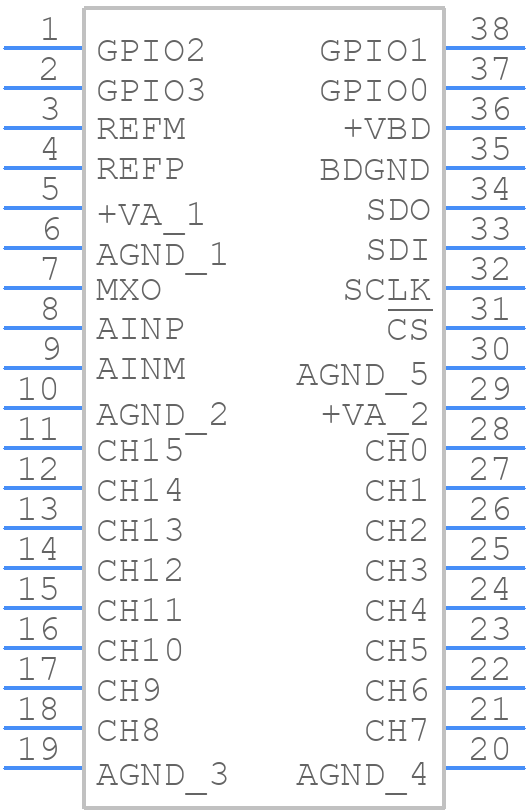

Use the download button to access the ADS7961QDBTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS79,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
