Texas Instruments provides a recommended layout and routing guide in the ADS802U datasheet, which includes guidelines for placing the device, routing the analog and digital signals, and minimizing noise and interference. It's essential to follow these guidelines to ensure optimal performance and accuracy.
The ADS802U outputs 16-bit digital data in a serial format. Engineers should ensure that their microcontroller or digital signal processor can handle this data format and has sufficient processing power to handle the data rate. Additionally, they should consider using a FIFO buffer or a dedicated ADC interface to handle the data stream.
Clock jitter can affect the ADS802U's performance, particularly in high-frequency applications. Engineers should ensure that the clock source has low jitter (<100 ps) to minimize the impact on the ADC's performance. Additionally, they can consider using a clock jitter cleaner or a phase-locked loop (PLL) to reduce clock jitter.
The ADS802U has an internal calibration mechanism, but engineers may need to perform additional calibration steps depending on their specific application. This can include offset and gain calibration, as well as adjusting the ADC's internal voltage reference. Texas Instruments provides calibration procedures and guidelines in the datasheet and application notes.
The ADS802U's power consumption is typically around 35 mW at 3.3 V and 10 MSPS. Engineers can reduce power consumption by operating the device at a lower clock frequency, using the device's power-down mode, or reducing the supply voltage. However, this may impact the device's performance and accuracy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS802U Overview

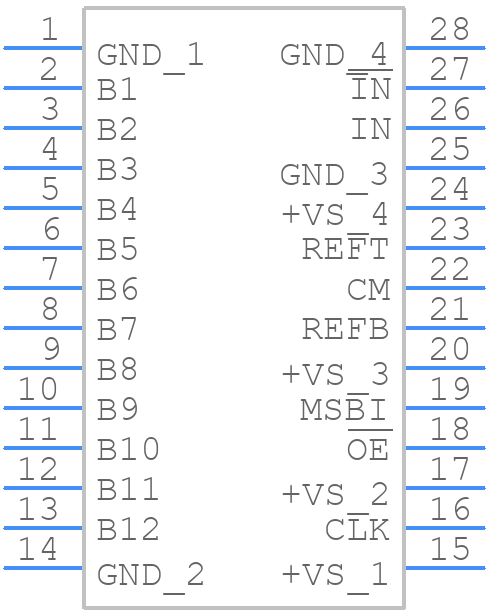

Use the download button to access the ADS802U schematic symbol, PCB footprint, and 3D model.
