Texas Instruments provides a recommended layout and routing guide in the ADS807EG4 evaluation module documentation, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The ADS807EG4's high-speed digital outputs require careful handling to prevent signal degradation and noise coupling. Use transmission lines, terminate the lines with 50-ohm resistors, and keep the output traces short and away from noise sources.
The optimal clock frequency for the ADS807EG4 depends on the specific application and sampling rate. However, Texas Instruments recommends a clock frequency between 10 MHz and 40 MHz for most applications, with a maximum frequency of 50 MHz.
To ensure accurate data conversion, ensure that the analog input signal is within the specified range, use a high-quality analog-to-digital converter (ADC) driver, and follow the recommended layout and routing guidelines. Additionally, calibrate the ADC using the built-in calibration feature or an external calibration signal.
The power consumption of the ADS807EG4 depends on the operating mode, sampling rate, and clock frequency. However, the typical power consumption is around 150 mW at a 40 MSPS sampling rate and 3.3 V supply voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS807EG4 Overview

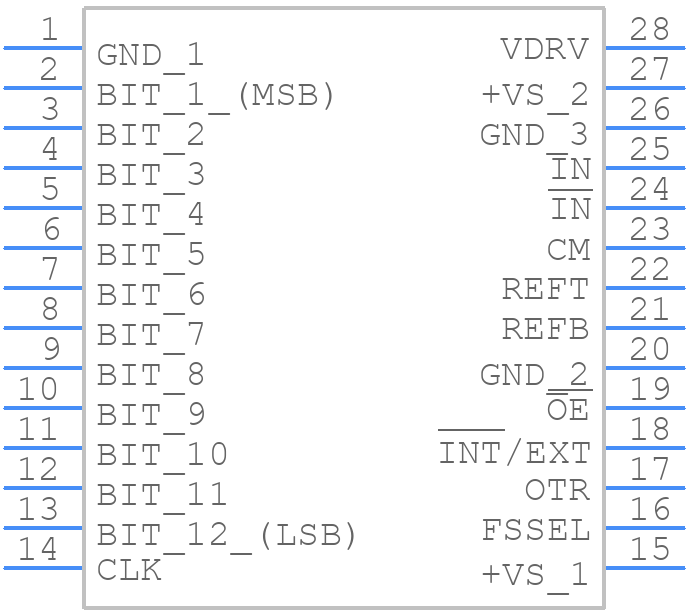

Use the download button to access the ADS807EG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS80,
or try a keyword search, such as Analog to Digital Converters
