Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout and routing guide, but it's also recommended to consult with a TI FAE or a PCB design expert for specific guidance.
Optimizing the performance of the ADS8166IRHBR requires careful consideration of the analog front-end design, PCB layout, and firmware configuration. TI provides an optimization guide and a software development kit (SDK) to help engineers optimize the performance of the ADS8166IRHBR in their specific application.
The maximum sampling rate of the ADS8166IRHBR is 500 kSPS. To achieve this rate, the device must be configured in the correct mode, and the clock frequency must be set to 40 MHz. Additionally, the analog input signal must be properly filtered and conditioned to ensure accurate conversion.
The ADS8166IRHBR has high-speed digital outputs that require careful handling to avoid signal degradation and electromagnetic interference (EMI). TI recommends using a low-voltage differential signaling (LVDS) interface, and to follow proper PCB design and layout guidelines to minimize signal degradation and EMI.
The power consumption of the ADS8166IRHBR varies depending on the operating mode and sampling rate. To minimize power consumption, TI recommends using the lowest possible sampling rate, disabling unused features, and using the power-down mode when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8166IRHBR Overview

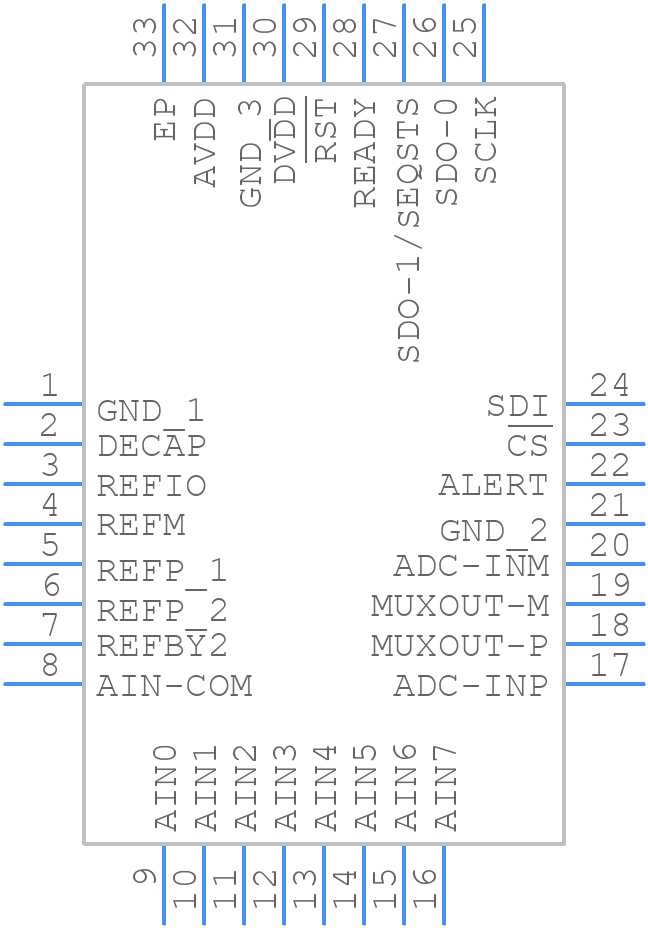

Use the download button to access the ADS8166IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS81,
or try a keyword search, such as Analog to Digital Converters
