Texas Instruments provides a layout guide and PCB design checklist in the ADS8167IRHBR evaluation module user's guide (SLAU445). It's essential to follow these guidelines to ensure optimal performance and minimize noise coupling.
The ADS8167IRHBR has a flexible AFE that can be optimized for different applications. TI provides an AFE design tool (AFEDESIGNCALC) that helps calculate the optimal values for the input resistors, capacitors, and gain settings based on the specific requirements of your application.
The ADS8167IRHBR outputs data in a serial format. It's recommended to use a FIFO or a buffer to handle the data, as the device can output data at a high rate. Additionally, consider using a digital signal processing (DSP) or a microcontroller (MCU) with a built-in ADC interface to simplify data handling and processing.
The ADS8167IRHBR has a dedicated clock input (CLKIN) that allows for external clocking. Ensure that the clock signal is clean, stable, and within the specified frequency range (up to 50 MHz). Additionally, use the device's built-in synchronization features, such as the SYNC pin, to ensure accurate data capture and processing.
The ADS8167IRHBR requires a clean and stable power supply. Use a low-noise, low-dropout (LDO) regulator, and ensure that the power supply lines are properly decoupled using capacitors and ferrite beads. Follow the power supply design guidelines in the datasheet and application notes to minimize noise and ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8167IRHBR Overview

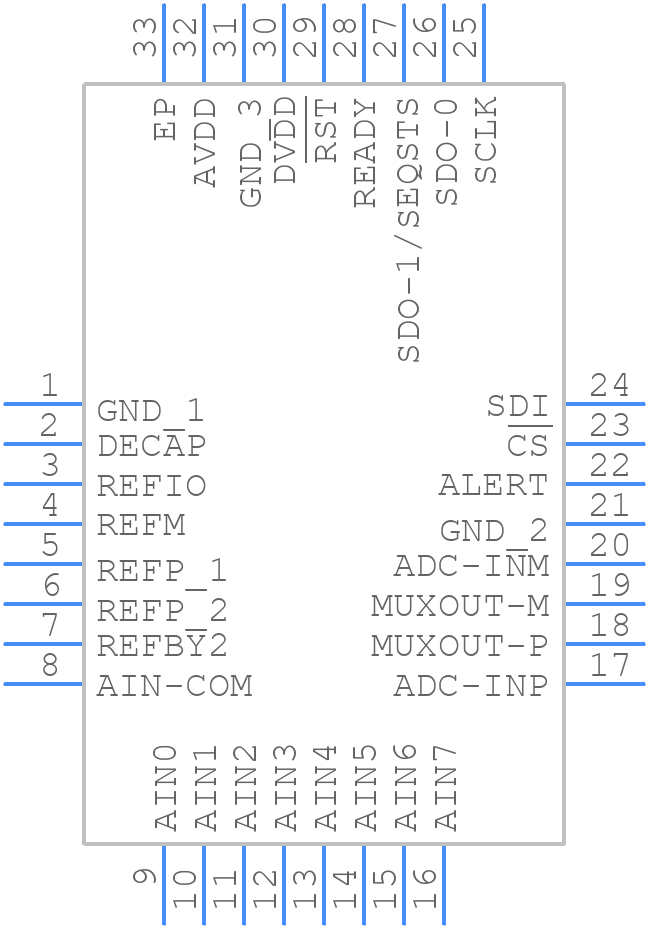

Use the download button to access the ADS8167IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS81,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
