A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, place the ADS830E close to the analog signal sources and use short traces to minimize noise pickup.
Optimizing the ADS830E's performance requires understanding the application's specific requirements. Consider factors such as signal frequency, amplitude, and noise levels. Adjust the gain, offset, and filter settings accordingly. Also, consider using external components such as filters or amplifiers to condition the input signal.
The ADS830E can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. Ensure that the interface clock frequency is within the recommended range, and use a level shifter if necessary to match the voltage levels. Also, consider using a FIFO or buffer to handle the high-speed data output.
The ADS830E outputs data at a high rate, so it's essential to use a suitable interface and processing system to handle the data. Consider using a FIFO or buffer to store the data temporarily, and then process it using a microcontroller, FPGA, or DSP. Also, ensure that the processing system can handle the data rate and format.
The ADS830E has a maximum junction temperature of 150°C. Ensure good thermal design practices such as using a heat sink, thermal vias, and a thermal interface material. Also, consider the operating temperature range and ensure that the device is operated within the recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS830E Overview

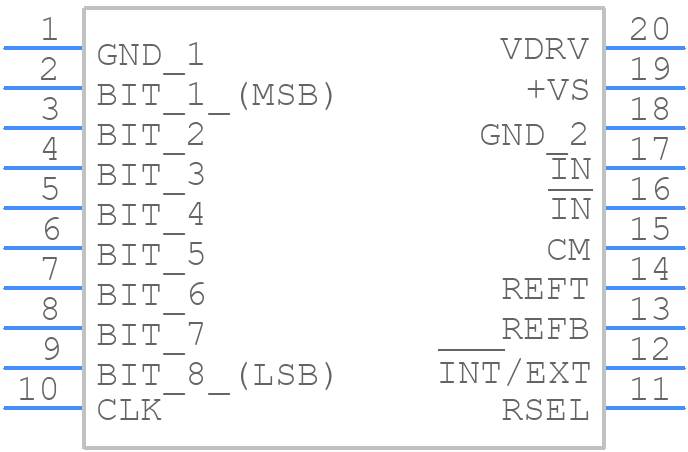

Use the download button to access the ADS830E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
