ADS8318IBDGSR - Texas Instruments

Description: Analog to Digital Converters - ADC 16B Unipolar 4.5- 5.5V ADC

Download ADS8318IBDGSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

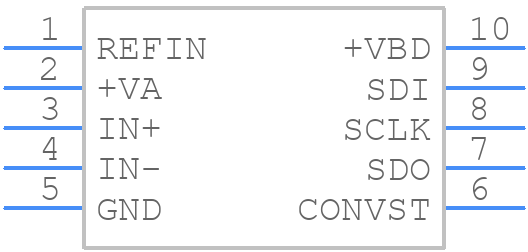

ADS8318IBDGSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8318IBDGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
ADS8318IBDGSR - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

ADS8318IBDGSR Details

  • Manufacturer Part Number:

    ADS8318IBDGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    -2.048 V

  • Conversion Time-Max:

    1.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8318IBDGSR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the application note SLAA523, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces.
  • The ADS8318IBDGSR has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers.
  • The maximum sampling rate of the ADS8318IBDGSR is 100 kSPS. However, the actual sampling rate may be limited by the system clock frequency, the conversion time, and the settling time of the analog input signal.
  • Yes, the ADS8318IBDGSR can be used in a multiplexed configuration. The device has a built-in multiplexer that allows up to 8 analog input channels to be connected to the ADC. The multiplexer can be controlled using the chip select (CS) and multiplexer address (MUX[2:0]) pins.
  • The power consumption of the ADS8318IBDGSR is typically around 15 mW at a supply voltage of 3.3 V. The power consumption can be reduced by using the power-down mode, which reduces the power consumption to around 1 μW. The power-down mode can be enabled by setting the PD pin high.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8318IBDGSR Overview

Use the download button to access the ADS8318IBDGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
