Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout and routing guide, but it's essential to follow good PCB design practices to minimize noise and ensure optimal performance.
The ADS8318IBDGST has a high input impedance, which can be challenging to drive. To handle this, use a low-impedance source, such as an op-amp, and ensure the source impedance is less than 1 kΩ. Additionally, use a buffer amplifier or an op-amp with a low output impedance to drive the ADS8318IBDGST.
The maximum clock frequency for the ADS8318IBDGST is 20 MHz. However, the actual clock frequency depends on the specific application and the required conversion rate. It's essential to consult the datasheet and application notes for specific guidance on clock frequency selection.
Calibration is critical for optimal performance. Follow the calibration procedure outlined in the datasheet, which involves adjusting the offset and gain to minimize errors. Additionally, consider using an external calibration circuit or a calibration IC to simplify the process.
The power consumption of the ADS8318IBDGST depends on the operating mode and clock frequency. In normal operation, the typical power consumption is around 15 mW. However, in power-down mode, the power consumption can be as low as 10 μW. Consult the datasheet for specific power consumption values based on your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8318IBDGST Overview

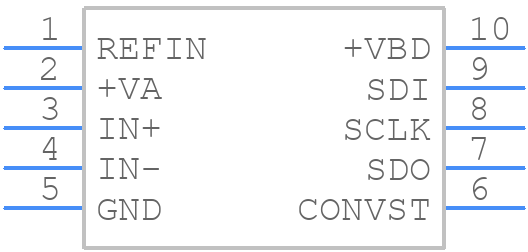

Use the download button to access the ADS8318IBDGST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
