Texas Instruments provides a layout guide in the datasheet, but it's essential to follow additional guidelines: keep analog and digital traces separate, use a solid ground plane, and minimize trace lengths. Also, use a 4-layer PCB with a dedicated analog power plane and a separate digital power plane.
The internal reference voltage can be configured using the REFSEL pin. For an external reference, connect it to the REFIN pin and set REFSEL to '0'. Ensure the external reference is stable and has a low noise output. Using an external reference can improve accuracy, but it may introduce additional noise and affect the overall system performance.
The optimal clock frequency depends on the specific application. A higher clock frequency (up to 20 MHz) can improve conversion speed, but it also increases power consumption. A lower clock frequency (down to 100 kHz) can reduce power consumption, but it may impact conversion speed. A typical clock frequency is around 1-5 MHz.
The POR circuit ensures the ADC is in a known state after power-up. Not using the POR can result in unpredictable behavior, including incorrect conversions or oscillations. To handle POR, connect the POR pin to a suitable capacitor and ensure the power supply is stable before starting conversions.
The ADS8319IBDRCT has a maximum operating temperature of 125°C. Temperature affects the ADC's performance, including offset voltage, gain error, and noise. Ensure proper thermal design, including heat sinking and airflow, to maintain a stable temperature and minimize performance degradation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8319IBDRCT Overview

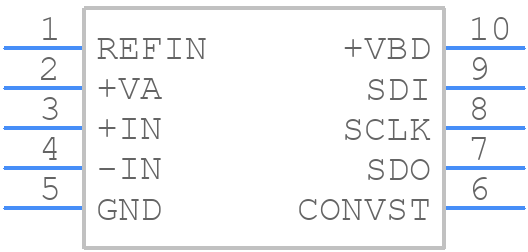

Use the download button to access the ADS8319IBDRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
